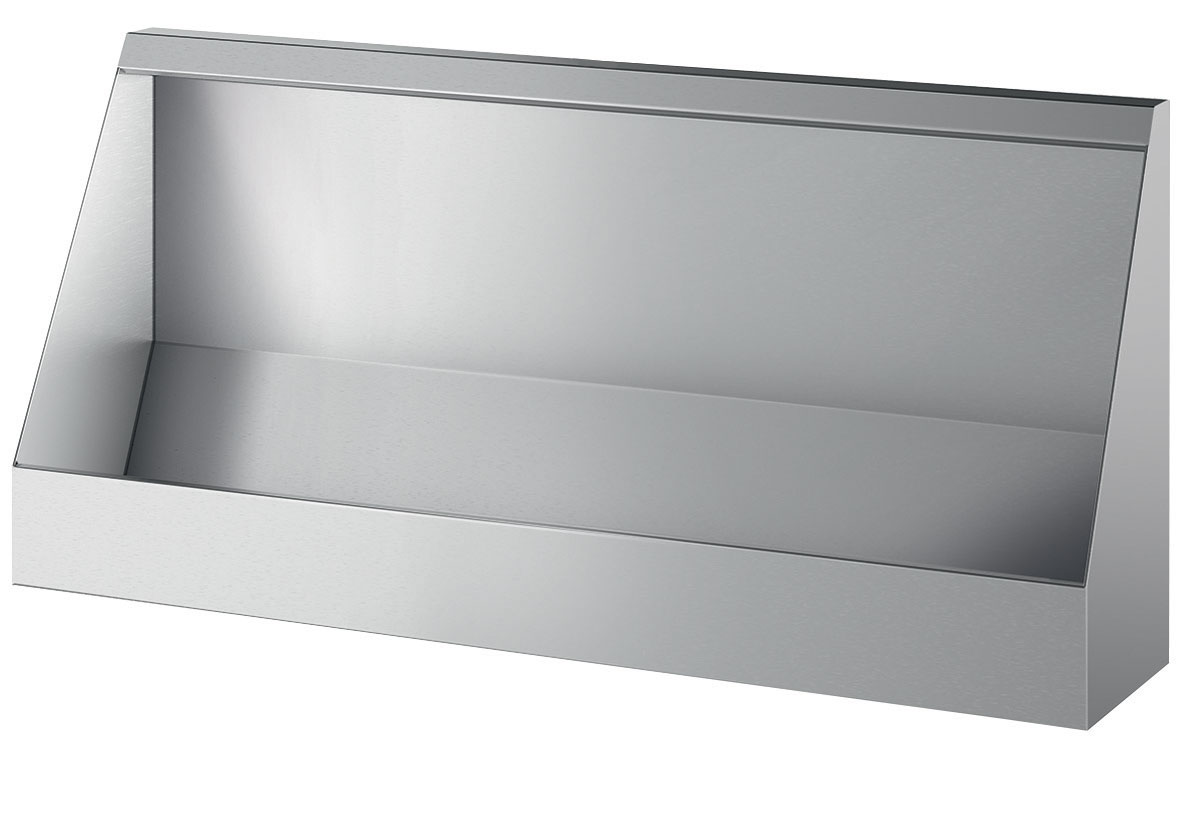

Wall-hung trough urinal

Ref. 130100
Polished satin 304 stainless steel - L. 1200mm
Wall-hung trough urinal

Presentation

DESCRIPTION

Wall-hung trough urinal

Ref. 130100
Wall-hung trough urinal.
Bacteriostatic 304 stainless steel. Polished satin finish.
Stainless steel thickness: 1.2mm.
Top water inlet F1/2". Drainage on the right.
Supplied with 1 stainless steel sparge pipe (perforated horizontal pipe) for optimum rinsingof urinal surface.
Vertical waste outlet.
Water saving: optimal rinsing with 0.1 L/sec. per service i.e. 0.3L per use.
Waste outlet 1½".
Supplied with fixing elements.
Without trap.
Possible to add one or more bacteriostatic 304 stainless steel dividers (ref. 100900). Fix directly onto the urinal in the desired location.
Installation advice: if you wish to install 2 urinals side by side, we recommend ordering one urinal with drainage on the left and one with drainage on the right.
Weight: 17.5kg.

ADVANTAGES

Nettoyage aisé

Bacteriostatic 304 stainless steel

Characteristics

TECHNICAL CHARACTERISTICS

Wall-hung trough urinal

Ref. 130100
Supply Top inlet/Exposed
Height 555mm
Length 275mm
Width 1200mm
Thickness 1.2mm
Finish 304 polished satin stainless steel
Warranty Garantie 10 ans
