SECURITHERM thermostatic sink mixer set

Ref. H9613
Sequential mixer and column set
SECURITHERM thermostatic sink mixer set

Presentation

DESCRIPTION

SECURITHERM thermostatic sink mixer set

Ref. H9613

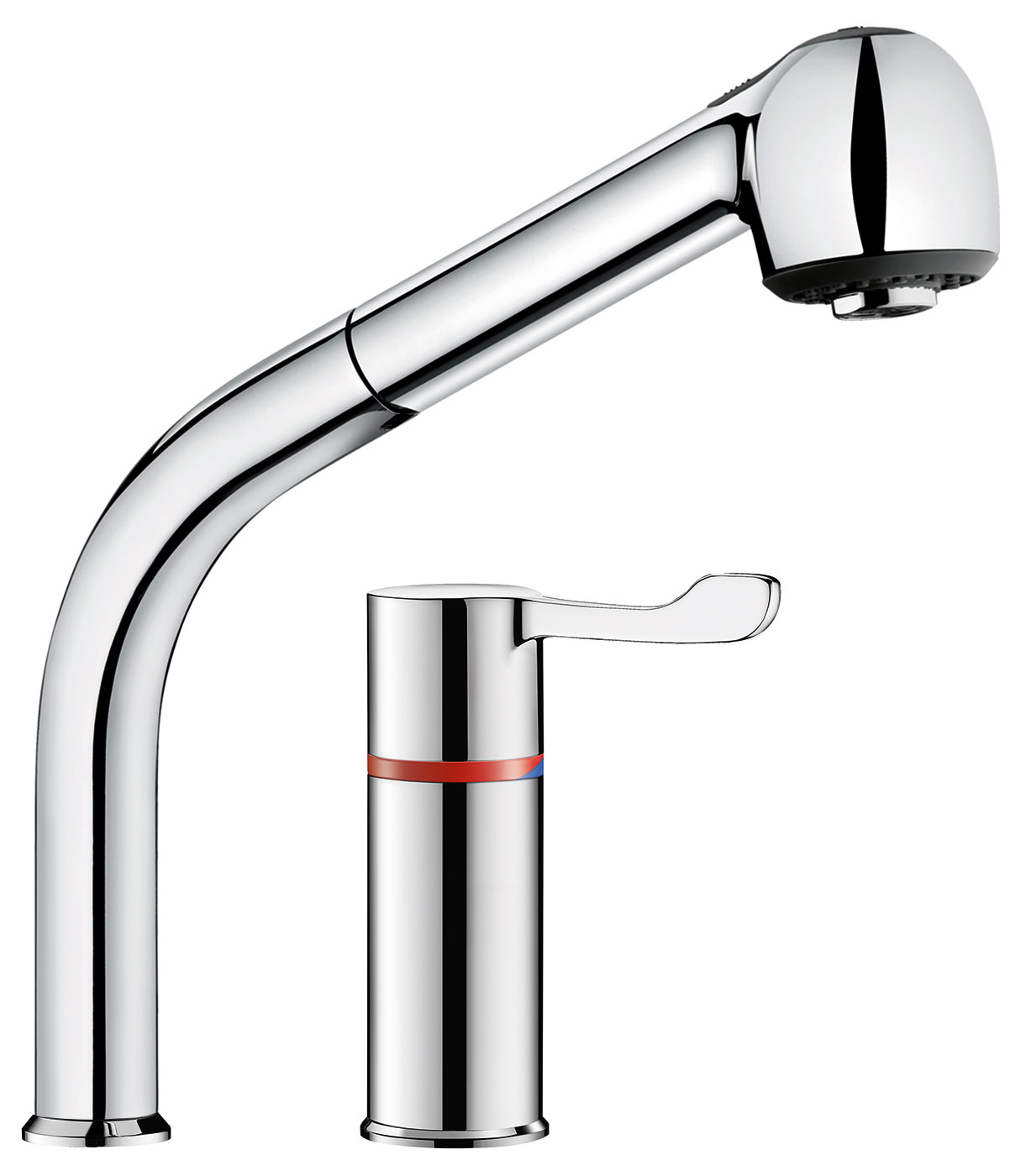

SECURITHERM thermostatic sequential sink mixer set and column with retracting hand spray.
Ideal for baby baths.
Anti-scalding failsafe: shuts off automatically if cold or hot water supply fails.
Securitouch thermal insulation prevents burns.
Sequential: opens and closes with cold water.
No risk of cross flow between the hot and cold water.
No non-return valves on the inlets.
Swivelling column H. 195mm L. 215mm.
Retracting hand spray with 2 jet options: flow straightener/rain effect.
Scale-resistant thermostatic sequential cartridge for single control temperature and flow-rate adjustment.
Temperature can be adjusted from cold water to 40°C with maximum temperature limiter set at 40°C.
Body and column with smooth interiors.
Flow rate regulated at 7 lpm.
No manual contact thanks to Hygiene control lever L. 100mm.
Mixed water brass outlet L. 160mm.
BIOSAFE flexible shower hose reduces bacterial proliferation: transparent polyurethane, smooth interior and exterior.
Hose with narrow diameter (internal Ø 6mm): low water volume.
Specific counterweight.
PEX flexibles F3/8" and reinforced fixing via 2 stainless steel rods.
Ideal for healthcare facilities, retirement and care homes, hospitals and clinics.
Suitable for people with reduced mobility.
30-year warranty.

ADVANTAGES

Confort - Ergonomie - Déclenchement souple

Sequential: opens/closes with cold water

Hygiène - Anti-bactérien - BIOSAFE

Hygiene: no non-return valves

Sécurité anti-brûlure

SECURITHERM: Optimal anti-scalding safety

Hygiène - Anti-bactérien - BIOSAFE

Sequential open and closing on cold water

Characteristics

TECHNICAL CHARACTERISTICS

SECURITHERM thermostatic sink mixer set

Ref. H9613
Connector F3/8"
Technology SECURITHERM sequential Securitouch
Drop height 195mm
Spout length 215mm
Flow rate 7 lpm
Temperature limiter 40°C
Finish Chrome-plated brass
Certificates ACS Logo DoP Logo PZH
Warranty 30-Year
Repairability

Downloads

DOWNLOADS

SECURITHERM thermostatic sink mixer set

Ref. H9613

To download one or several documents linked to this product, please select the type of file you require :

Spare parts

SPARE PARTS

SECURITHERM thermostatic sink mixer set

Ref. H9613
1. 1316
Swivelling column with retracting hand spray H. 200mm
2. H9642
SECURITHERM thermostatic mixer
3. 2211CP
Counterweight
