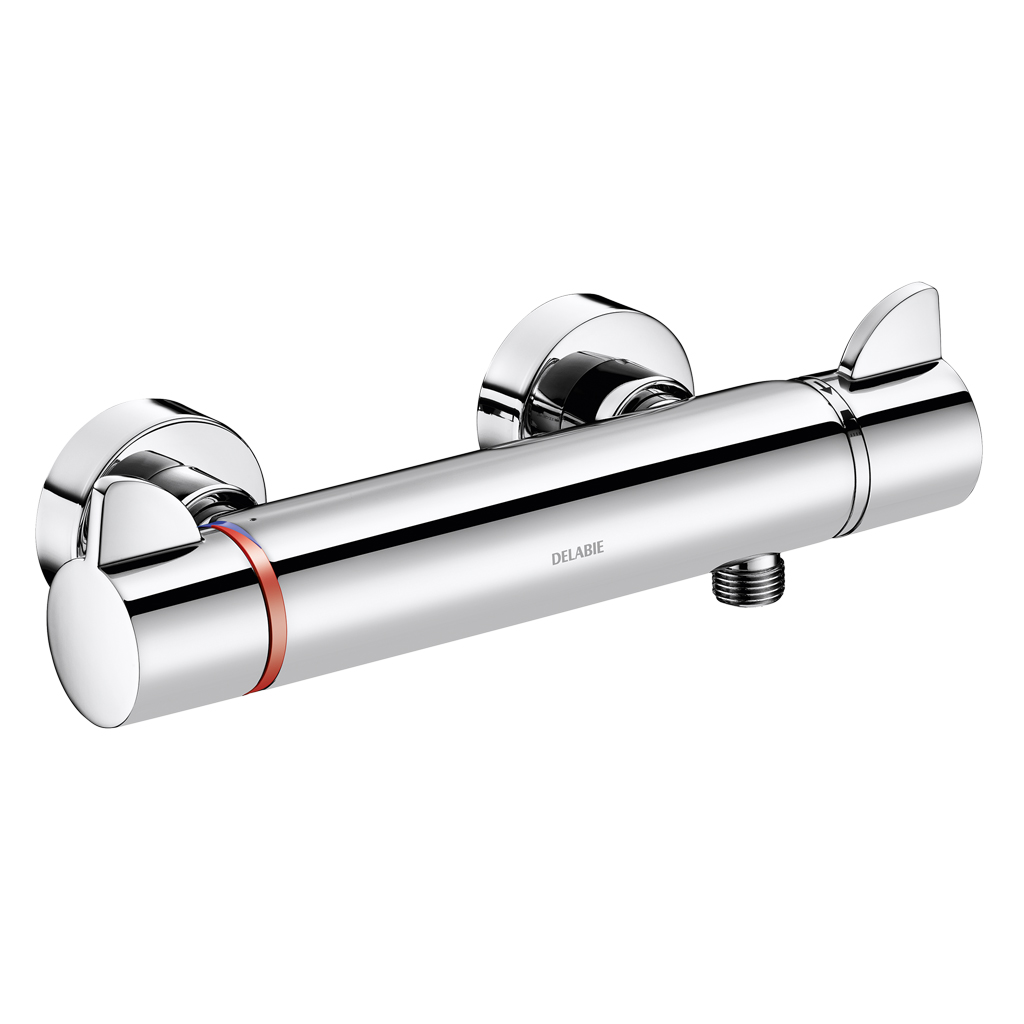

SECURITHERM Securitouch thermostatic shower mixer

Ref. H9741S
Dual control thermostatic mixer
SECURITHERM Securitouch thermostatic shower mixer

Presentation

DESCRIPTION

SECURITHERM Securitouch thermostatic shower mixer

Ref. H9741S
SECURITHERM dual control thermostatic shower mixer.
Thermostatic mixer with anti-scalding failsafe: shuts off automatically if cold or hot water supply fails (and vice versa).
Securitouch thermal insulation to prevent burns.
Scale-resistant thermostatic cartridge for temperature adjustment.
1/4-turn ceramic head for flow rate adjustment.
Temperature control from 25 - 41°C.
Double temperature limiter: first limiter set at 38°C can be overridden, second limiter set at 41°C.
Thermal shocks are are easy to undertake without removing the control knob or shutting off the cold water.
Flow rate regulated at 9 lpm.
Chrome-plated brass body and ERGO controls.
M1/2" shower outlet.
F3/4" inlets with integrated filters and non-return valves.
Wall-mounted mixer with M1/2" M3/4" off-set standard connectors.
Mixer ideal for healthcare facilities, retirement and care home, hospitals and clinics.
10-year warranty.

ADVANTAGES

Sécurité anti-brûlure

SECURITHERM: Optimum anti-scalding safety

Sécurité anti-brûlure

Double temperature limiter

Sécurité anti-brûlure

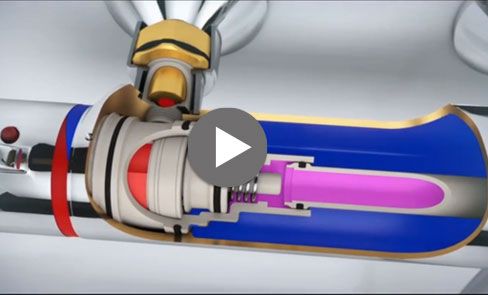

Securitouch thermal insulation prevents burns

Confort - Ergonomie - Déclenchement souple

Thermostatic: complete temperature stability

Characteristics

TECHNICAL CHARACTERISTICS

SECURITHERM Securitouch thermostatic shower mixer

Ref. H9741S
Connector M1/2"
Technology SECURITHERM dual control thermostatic, Securitouch
Depth 84mm
Length 286mm
Flow rate 9 lpm
Temperature limiter 41°C
Finish Chrome-plated brass
Certificates Logo ACS Logo DIN-DVGW Logo Belgaqua SINTEF Logo PZH Logo DoP
Warranty Garantie 10 ans
