DESCRIPTION

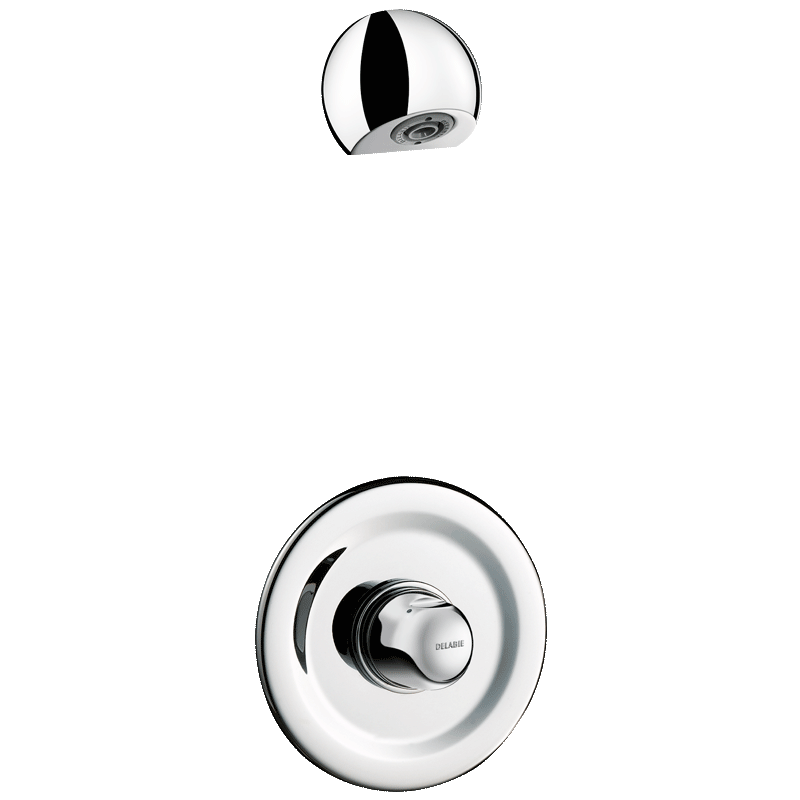

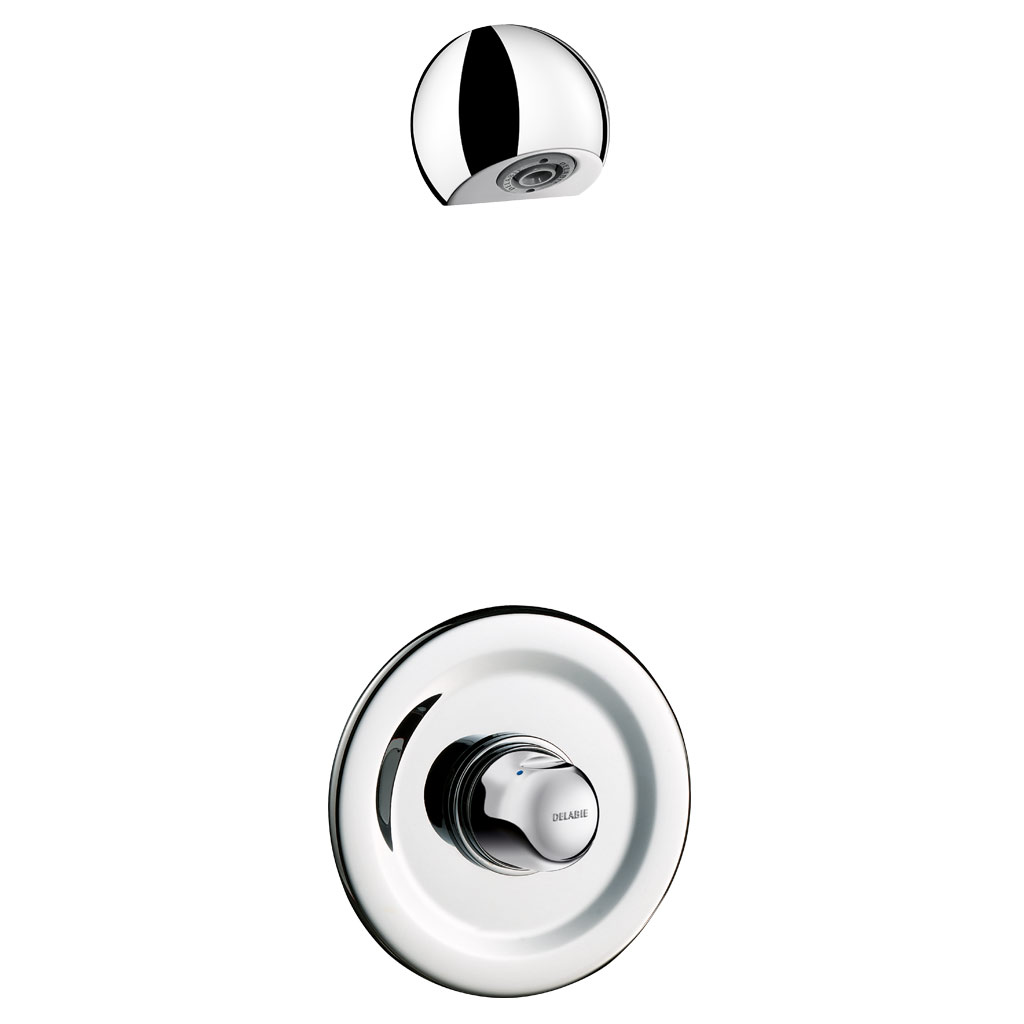

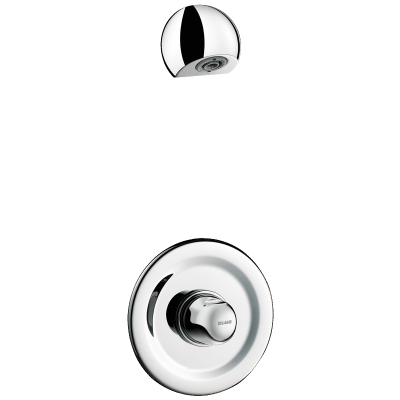

TEMPOMIX time flow shower kit
Ref. 790909Time flow shower kit with recessed waterproof housing:

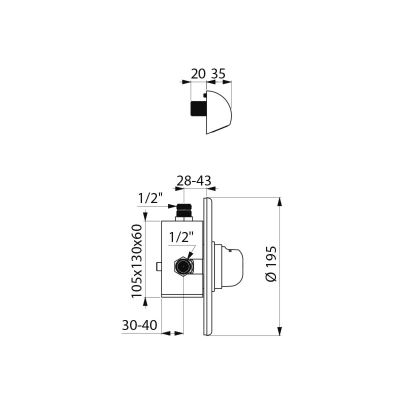

Chrome-plated wall plate Ø 195mm.
Standard recessed housing.
Recessing depth can be adjusted from 28 to 43mm.
TEMPOMIX ¾" single control mixer.
Ligature-resistant collar.
Temperature control and operation via the push-button.
Maximum temperature limiter (can be adjusted by the installer).
Time flow ~30 seconds.
Flow rate 6 lpm at 3 bar.
Chrome-plated, tamperproof, scale-resistant ROUND shower head with automatic flow rate regulation.
M½" connectors for copper tubes Ø 14mm.
Integrated non-return valves and filters.
Chrome-plated metal push-button.
Suitable for people with reduced mobility.
30-year warranty.
Integrated non-return valves and filters. This model does not have a waterproof recessing box. The installer must ensure that the recessing area is waterproof and any leaks or condensates can drain away (see installation guide).
Chrome-plated wall plate Ø 195mm.
Standard recessed housing.
Recessing depth can be adjusted from 28 to 43mm.
TEMPOMIX ¾" single control mixer.
Ligature-resistant collar.
Temperature control and operation via the push-button.
Maximum temperature limiter (can be adjusted by the installer).
Time flow ~30 seconds.
Flow rate 6 lpm at 3 bar.
Chrome-plated, tamperproof, scale-resistant ROUND shower head with automatic flow rate regulation.
M½" connectors for copper tubes Ø 14mm.
Integrated non-return valves and filters.
Chrome-plated metal push-button.
Suitable for people with reduced mobility.
30-year warranty.
Integrated non-return valves and filters. This model does not have a waterproof recessing box. The installer must ensure that the recessing area is waterproof and any leaks or condensates can drain away (see installation guide).
ADVANTAGES
80% water savings
Wall recessed installation
Time flow system tested to over 500,000 operations
Soft-touch operation
TECHNICAL CHARACTERISTICS
TEMPOMIX time flow shower kit
Ref. 790909Connector | ½" |
Technology | Time flow |
Flow rate | 6 lpm |
Certificates | |
Warranty |
