SECURITHERM dual control shower panel

Ref. 792334
Time flow thermostatic and mechanical dual control
SECURITHERM dual control shower panel

Presentation

DESCRIPTION

SECURITHERM dual control shower panel

Ref. 792334

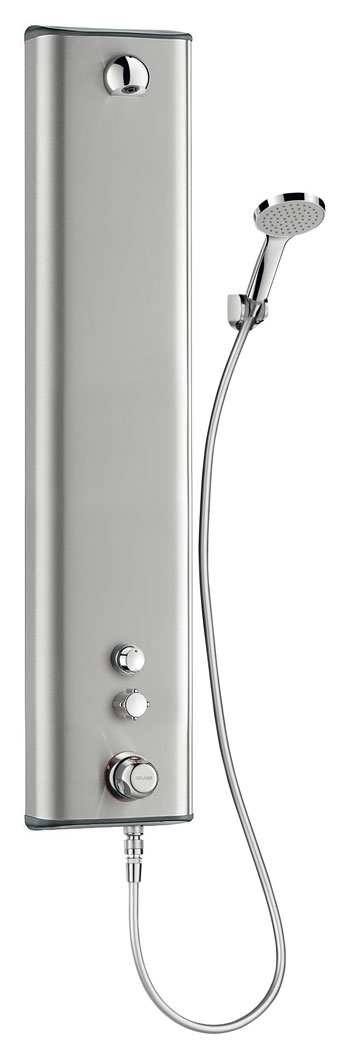

Dual control thermostatic shower panel:
Large model satin stainless steel shower panel for wall mounted, exposed installation.
With concealed inlet via flexibles, M½".
SECURITHERM thermostatic shower mixer.
Adjustable temperature control from cold water up to 38°C with 1st limiter set at 38°C and 2nd limiter set at 41°C.
Anti-scalding failsafe: automatic shut-off if cold water fails.
Anti-cold showers function: automatic shut-off if hot water fails.
Chrome-plated, tamperproof, scale-resistant, fixed, ROUND shower head with automatic flow rate regulation at 6 lpm at 3 bar.
Handset with removable flexible via push-fit rapid STOP connector, wall support supplied.
Time flow valve ~30 seconds with soft-touch operation to control the ROUND shower head
Non-time flow valve to control the handset with flexible hose.
Stopcocks.
Concealed fixings.
Filters and non-return valves.
Shower panel suitable for people with reduced mobility.
30-year warranty.

ADVANTAGES

Confort - Ergonomie - Déclenchement souple

Thermostatic temperature regulation

Sécurité anti-brûlure

Immediate shut-off if cold water fails

Confort - Ergonomie - Déclenchement souple

Fixed or handheld shower head

Anti-vandalisme

Stainless steel body, brass controls

Characteristics

TECHNICAL CHARACTERISTICS

SECURITHERM dual control shower panel

Ref. 792334
Connector M½"
Technology Non-time flow and time flow
Height 1,220mm
Depth 100mm
Width 250mm
Flow rate 6 lpm
Temperature limiter Thermostatic
Finish Stainless steel
Certificates ACS Logo DoP Logo PZH
Warranty 30-Year

Downloads

DOWNLOADS

SECURITHERM dual control shower panel

Ref. 792334

To download one or several documents linked to this product, please select the type of file you require :
