DESCRIPTION

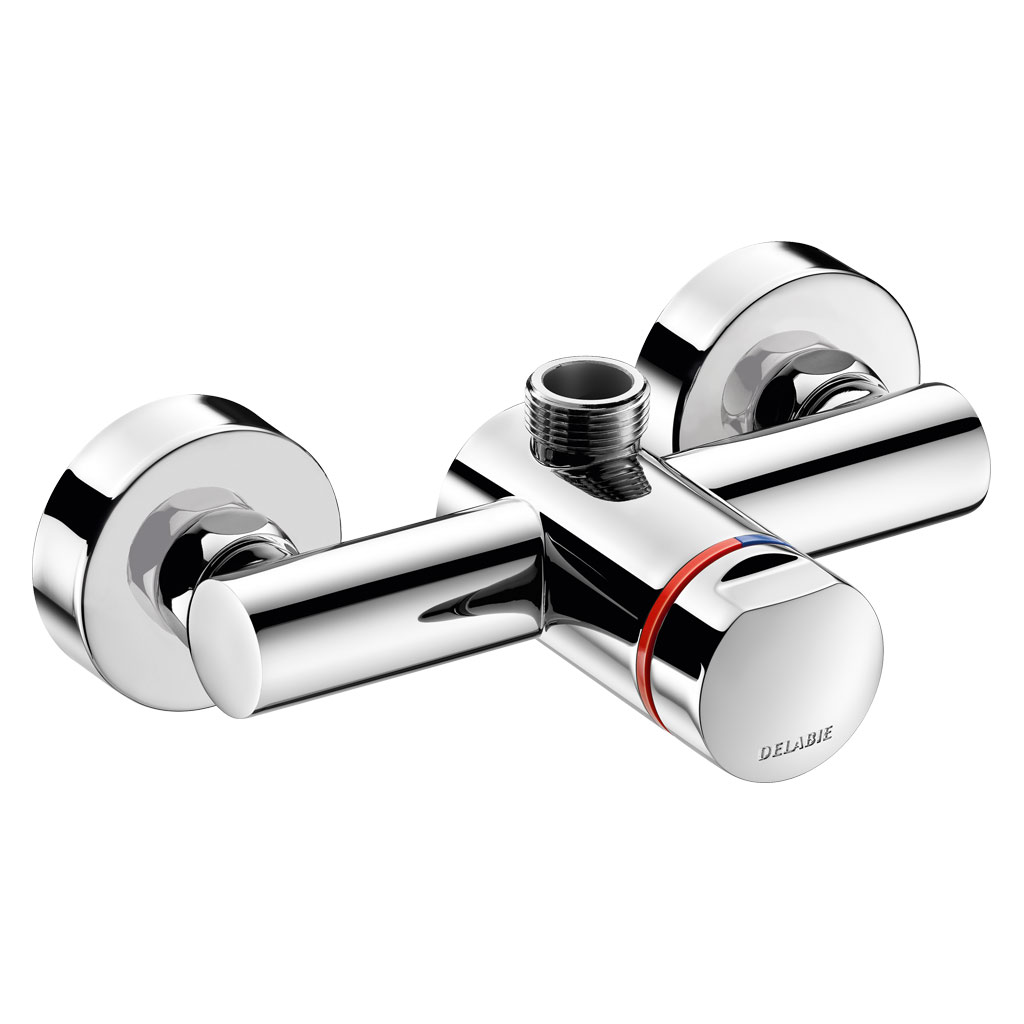

TEMPOMIX 3 time flow shower mixer
Ref. 794400Exposed time flow shower mixer:
TEMPOMIX 3 single control mixer, top outlet M¾".
For wall-mounted, exposed installation.
Temperature control and operation via the push-button.
Maximum temperature limiter (can be adjusted by the installer).
Soft-touch operation.
Time flow ~30 seconds.
Flow rate 6 lpm at 3 bar, can be adjusted from 6 - 12 lpm.
Chrome-plated solid brass.
Integrated filters and non-return valves.
Chrome-plated metal push-button.
M½" offset connectors for 130 - 170mm centres.
Suitable for people with reduced mobility.
30-year warranty.
TEMPOMIX 3 single control mixer, top outlet M¾".
For wall-mounted, exposed installation.
Temperature control and operation via the push-button.
Maximum temperature limiter (can be adjusted by the installer).
Soft-touch operation.
Time flow ~30 seconds.
Flow rate 6 lpm at 3 bar, can be adjusted from 6 - 12 lpm.
Chrome-plated solid brass.
Integrated filters and non-return valves.
Chrome-plated metal push-button.
M½" offset connectors for 130 - 170mm centres.
Suitable for people with reduced mobility.
30-year warranty.
ADVANTAGES
Soft-touch operation
Time flow system tested to over 500,000 operations
TECHNICAL CHARACTERISTICS
TEMPOMIX 3 time flow shower mixer
Ref. 794400Connector | M½" |
Technology | Time flow |
Width | 150mm |
Flow rate | 9 lpm |
Certificates | |
Warranty |
VARIANTS
794470 | Bottom outlet, M½" inlet with M¾ connector |
---|
VARIANTS
794470 | Bottom outlet, M½" inlet with M¾ connector |
---|
