DOC M Products /

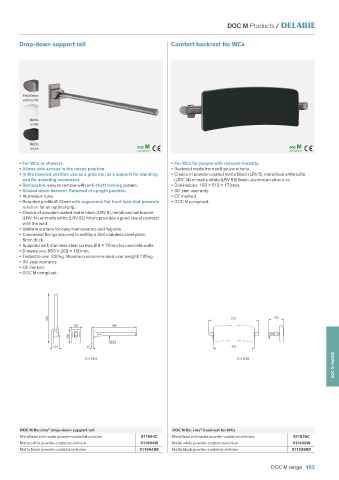

Drop-down support rail Comfort backrest for WCs

Metallised
anthracite

Matte
white

Matte
black DOC M DOC M
compliant compliant
• For WCs or showers. • For WCs for people with reduced mobility.
• Allows side access in the raised position. • Backrest made from soft polyurethane.
• In the lowered position use as a grab bar, as a support for standing • Choice of powder-coated matte black (LRV 5), metallised anthracite
and for assisting movement. (LRV 14) or matte white (LRV 82) finish, aluminium structure.
• Removable: easy to remove with anti-theft locking system. • Dimensions: 150 513 173mm.
• Slowed down descent. Retained in upright position. • 30-year warranty.
• Aluminium tube. • CE marked.
• Rounded profile Ø 42mm with ergonomic flat front face that prevents • DOC M compliant.
rotation for an optimal grip.
• Choice of powder-coated matte black (LRV 5), metallised anthracite
(LRV 14) or matte white (LRV 82) finish; provides a good visual contrast
with the wall.
• Uniform surface for easy maintenance and hygiene.
• Concealed fixings secured to wall by a 304 stainless steel plate,
5mm thick.
• Supplied with stainless steel screws Ø 8 70mm for concrete walls.
• Dimensions: 850 202 120mm.
• Tested to over 200kg. Maximum recommended user weight: 135kg.
• 30-year warranty.
• CE marked.
• DOC M compliant.

920 513 150
120 850
202
Ø 42
109 23 420
DOC M RANGE
511964 511928

®
DOC M Be-Line drop-down support rail DOC M Be-Line backrest for WCs
®
Metallised anthracite powder-coated aluminium 511964C Metallised anthracite powder-coated aluminium 511928C
Matte white powder-coated aluminium 511964W Matte white powder-coated aluminium 511928W
Matte black powder-coated aluminium 511964BK Matte black powder-coated aluminium 511928BK

DOC M range 163
