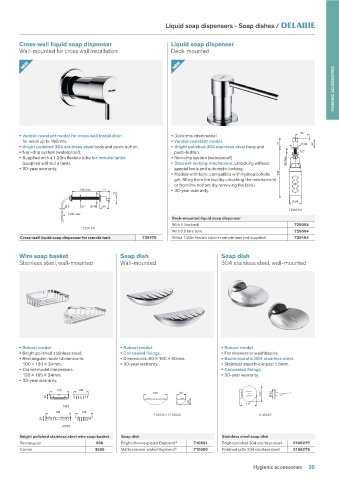

Page 37 - Accessibility-Hygienic-Accessories
P. 37

Liquid soap dispensers - Soap dishes /


            Cross-wall liquid soap dispenser                     Liquid soap dispenser
            Wall-mounted for cross wall installation             Deck-mounted

             NEW                                                  NEW
                                                                                                                          HYGIENIC ACCESSORIES













                                                                                                               95
            • Vandal-resistant model for cross wall installation   • Deck-mounted model.
             for walls up to 190mm.                              • Vandal-resistant model.             71
            • Bright polished 304 stainless steel body and push-button.   • Bright polished 304 stainless steel body and   Ø 49  60
            • Non-drip system (waterproof).                       push-button.                                1/2"
            • Supplied with a 1.20m flexible tube for remote tanks    • Non-drip system (waterproof).
             (supplied without a tank).                          • Discreet locking mechanism: unlocking without   40 max
            • 30-year warranty.                                   special tools and automatic locking.
                                                                 • Models with tank: compatible with hydroalcoholic   342
                                                                  gel; filling from the top (by unlocking the mechanism)
                                                                  or from the bottom (by removing the tank).
                                 190 max  71                     • 30-year warranty.
                                              27
                                                                                                            Ø 84
                            Ø 9  1/2"  Ø 49  64
                                                                                                           729064
                             1200 max
                                                                  Deck-mounted liquid soap dispenser
                                                                  With 1 litre tank                          729064
                                  729170
                                                                  With 0.5 litre tank                        729564
            Cross-wall liquid soap dispenser for remote tank  729170  With a 1.20m flexible tube for remote tank (not supplied)   729164

            Wire soap basket                   Soap dish                           Soap dish
            Stainless steel, wall-mounted      Wall-mounted                        304 stainless steel, wall-mounted
















            • Robust model.                    • Robust model.                     • Robust model.
            • Bright polished stainless steel.  • Concealed fixings.                • For showers or washbasins.
            • Rectangular model dimensions:    • Dimensions: 60   160   40mm.      • Bacteriostatic 304 stainless steel.
             100   130   34mm.                 • 30-year warranty.                 • Stainless steel thickness: 1.5mm.
            • Corner model dimensions:                                             • Concealed fixings.
             120   165   34mm.                                                     • 30-year warranty.
            • 30-year warranty.
                         130     100
                                                           160      60                           107  Ø 62
                     34
                                                                        40
                           569                                                             117
                         165      120
                                                           710501/710500                        510627
                    34
                           3569
            Bright polished stainless steel wire soap basket  Soap dish            Stainless steel soap dish
            Rectangular                569      Bright chrome-plated Bayblend ®  710501  Bright polished 304 stainless steel  510627P
            Corner                     3569     Matte chrome-plated Bayblend   ®  710500  Polished satin 304 stainless steel  510627S

                                                                                              Hygienic accessories  35
