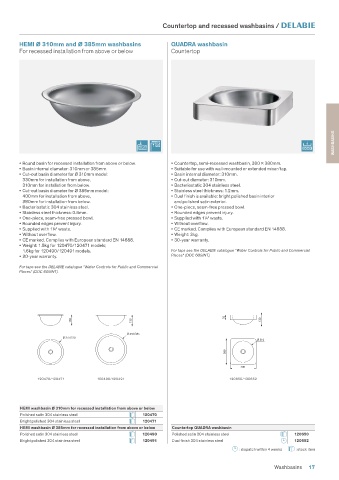

Page 19 - Stainless_Steel_Sanitary_Ware
P. 19

Countertop and recessed washbasins /



            HEMI Ø 310mm and Ø 385mm washbasins                  QUADRA washbasin
            For recessed installation from above or below        Countertop
















                                                                                                                          WASHBASINS





            • Round basin for recessed installation from above or below.  • Countertop, semi-recessed washbasin, 380 x 380mm.
            • Basin internal diameter: 310mm or 385mm.           • Suitable for use with wall-mounted or extended mixer/tap.
            • Cut-out basin diameter for Ø 310mm model:          • Basin internal diameter: 310mm.
             330mm for installation from above,                  • Cut-out diameter: 310mm.
             310mm for installation from below.                  • Bacteriostatic 304 stainless steel.
            • Cut-out basin diameter for Ø 385mm model:          • Stainless steel thickness: 1.2mm.
             400mm for installation from above,                  • Dual finish is available: bright polished basin interior
             380mm for installation from below.                   and polished satin exterior.
            • Bacteriostatic 304 stainless steel.                • One-piece, seam-free pressed bowl.
            • Stainless steel thickness: 0.8mm.                  • Rounded edges prevent injury.
            • One-piece, seam-free pressed bowl.                 • Supplied with 11/4" waste.
            • Rounded edges prevent injury.                      • Without overflow.
            • Supplied with 11/4" waste.                         • CE marked. Complies with European standard EN 14688.
            • Without overflow.                                  • Weight: 3kg.
            • CE marked. Complies with European standard EN 14688.  • 30-year warranty.
            • Weight: 1.5kg for 120470/120471 models;
             1.6kg for 120490/120491 models.                     For taps see the DELABIE catalogue "Water Controls for Public and Commercial
            • 30-year warranty.                                  Places" (DOC 609INT).

            For taps see the DELABIE catalogue "Water Controls for Public and Commercial
            Places" (DOC 609INT).








                                                                                    70
                              130                  150 150                          70           130  130
                              130
                            Ø 375/310              Ø 450/385
                                                   Ø 450/385
                            Ø 375/310                                                          Ø 310
                                                                                               Ø 310
                                                                                    380
                                                                                    380
                                                                                          380
                                                                                          380
                  120470/120471        120490/120491                                  120650/120652





            HEMI washbasin Ø 310mm for recessed installation from above or below
            Polished satin 304 stainless steel         120470
            Bright polished 304 stainless steel        120471
            HEMI washbasin Ø 385mm for recessed installation from above or below  Countertop QUADRA washbasin
            Polished satin 304 stainless steel         120490     Polished satin 304 stainless steel         120650
            Bright polished 304 stainless steel        120491     Dual finish 304 stainless steel            120652
                                                                                          : dispatch within 4 weeks   : stock item

                                                                                                     Washbasins   17
