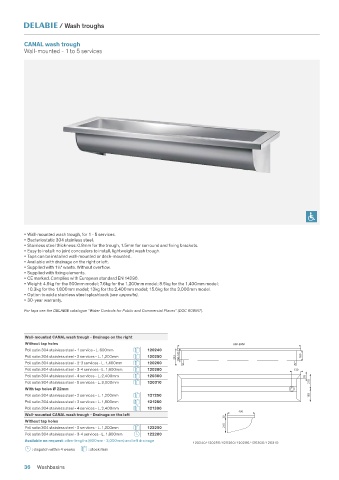

Page 38 - Stainless_Steel_Sanitary_Ware
P. 38

/ Wash troughs



              CANAL wash trough
              Wall-mounted - 1 to 5 services






































              • Wall-mounted wash trough, for 1 - 5 services.
              • Bacteriostatic 304 stainless steel.
              • Stainless steel thickness: 0.8mm for the trough, 1.5mm for surround and fixing brackets.
              • Easy to install: no joint concealers to install, lightweight wash trough.
              • Taps can be installed wall-mounted or deck-mounted.
              • Available with drainage on the right or left.
              • Supplied with 11/4" waste. Without overflow.
              • Supplied with fixing elements.
              • CE marked. Complies with European standard EN 14296.
              • Weight: 4.9kg for the 600mm model; 7.6kg for the 1,200mm model; 8.5kg for the 1,400mm model;
               10.3kg for the 1,800mm model; 13kg for the 2,400mm model; 15.6kg for the 3,000mm model.
              • Option to add a stainless steel splashback (see opposite).
              • 30-year warranty.
              For taps see the DELABIE catalogue "Water Controls for Public and Commercial Places" (DOC 609INT).




              Wall-mounted CANAL wash trough - Drainage on the right
              Without tap holes                                                        600-3000                      400
              Pol. satin 304 stainless steel - 1 service - L. 600mm   120240                                     30
              Pol. satin 304 stainless steel - 2 services - L. 1,200mm  120250  245  160-165                   180  215
              Pol. satin 304 stainless steel - 2-3 services - L. 1,400mm  120260
              Pol. satin 304 stainless steel - 3-4 services - L. 1,800mm  120280                            130
              Pol. satin 304 stainless steel - 4 services - L. 2,400mm   120300                                 78
              Pol. satin 304 stainless steel - 5 services - L. 3,000mm  120310                                    215
              With tap holes Ø 22mm
              Pol. satin 304 stainless steel - 2 services - L. 1,200mm  121250                                    185
              Pol. satin 304 stainless steel - 3 services - L. 1,800mm  121280
              Pol. satin 304 stainless steel - 4 services - L. 2,400mm  121300
                                                           600-3000                      400
              Wall-mounted CANAL wash trough - Drainage on the left
                                                                                    30
              Without tap holes         160-165                                   180
                                      245
              Pol. satin 304 stainless steel - 2 services - L. 1,200mm  122250      215
              Pol. satin 304 stainless steel - 3-4 services - L. 1,800mm  122280
                                                                                130
              Available on request: other lengths (600mm - 3,000mm) and left drainage
                                                                         120240/120250/120260/120280/120300/120310
                                                                                    78
                 : dispatch within 4 weeks   : stock item                            215
                                                                                     185
