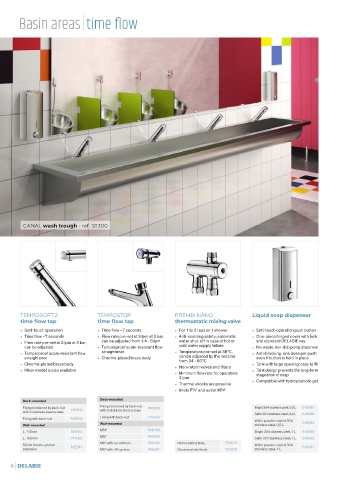

Page 8 - the-essentials

Basin areas time flow

CANAL wash trough - ref. 121300

TEMPOSOFT 2 TEMPOSTOP PREMIX NANO Liquid soap dispenser
time flow tap time flow tap thermostatic mixing valve
X Soft-touch operation X Time flow ~7 seconds X For 1 to 2 taps or 1 shower X Soft-touch operation push button

X Time flow ~7 seconds X Flow rate pre-set at 3 lpm at 3 bar, X Anti-scalding safety: automatic X One-piece hinged cover with lock
X Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 - 6 lpm water shut-off in case of hot or and standard DELABIE key
can be adjusted X Tamperproof scale-resistant flow cold water supply failure X No-waste, non-drip pump dispenser

X Tamperproof scale-resistant flow straightener X Temperature pre-set at 38°C, X Anti-blocking: one dose per push
straightener X Chrome-plated brass body can be adjusted by the installer even if button is held in place
from 34 - 60°C
X Chrome-plated brass body X Tank with large opening: easy to fill

X Non-return valves and filters

X Mixer model is also available X Tank design prevents the long-term
X Minimum flow rate for operation: stagnation of soap

3 lpm
X Compatible with hydroalcoholic gel
X Thermal shocks are possible
3
X Inlets F / 8" and outlet M / 8"
3
Deck-mounted
Deck-mounted
Fixing reinforced by back-nut 740300 Fixing reinforced by back-nut 745300 Bright 304 stainless steel, 0,5 L 510583
with 3 stainless steel screws with 3 stainless steel screws
Satin 304 stainless steel, 0,5 L 510586
Fixing with back-nut 745100
Fixing with back-nut 740500
White powder-coated 304
Wall-mounted 510584
Wall-mounted stainless steel, 0,5 L
M 3 / 8" 744000
L. 110mm 741500 Bright 304 stainless steel, 1 L 510580
M½ " 746000
L. 150mm 741550 Satin 304 stainless steel, 1 L 510582

M½" with escutcheon 746292 Nickel-plated body 732012

50mm chrome-plated 822741 White powder-coated 304 510581

extension M½" with AB system 746001 Chrome-plated body 732016 stainless steel, 1 L
6
