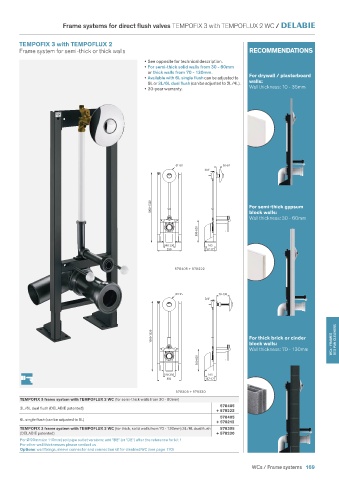

Frame systems for direct flush valves TEMPOFIX 3 with TEMPOFLUX 2 WC /

TEMPOFIX 3 with TEMPOFLUX 2
Frame system for semi-thick or thick walls RECOMMENDATIONS

• See opposite for technical description.
• For semi-thick solid walls from 30 - 60mm
or thick walls from 70 - 130mm.
• Available with 6L single flush can be adjusted to For drywall / plasterboard
walls:
9L or 3L/6L dual flush (can be adjusted to 2L/4L).
• 30-year warranty. Wall thickness: 10 - 35mm

Ø 195 30-60
3/4"

1000-1320 For semi-thick gypsum
block walls:
Wall thickness: 30 - 60mm
300-620

180-230 165
350 157-177

578405 + 578222

Ø 195 70-130
3/4"

1000-1320 For thick brick or cinder BED PAN CLEANERS
block walls:
Wall thickness: 70 - 130mm WCs - FRAMES
300-620

180-230 165
350 157-177

578305 + 578230
TEMPOFIX 3 frame system with TEMPOFLUX 2 WC (for semi-thick walls from 30 - 60mm)
578405
3L/6L dual flush (DELABIE patented)
+ 578222
578405
6L single flush (can be adjusted to 9L)
+ 578212
TEMPOFIX 3 frame system with TEMPOFLUX 2 WC (for thick, solid walls from 70 - 130mm) 3L/6L dual flush 578305
(DELABIE patented) + 578230
For Ø 90mm (or 110mm) soil pipe outlet versions: add "BE" (or "DE") after the reference for kit 1
For other wall thicknesses please contact us
Options: wall fixings, sleeve connector and connection kit for disabled WC (see page 170)

WCs / Frame systems 169
