/ TEMPOMATIC 4 electronic shower controls

                         •  Exceptional water savings: 80%
                         •  Hygiene: no manual contact, duty flush reduces bacterial development
                         •  Comfort: voluntary or automatic shut-off, rain-effect spray
                         •  Easy to install: modular and adjustable waterproof housing (for different wall finishes)

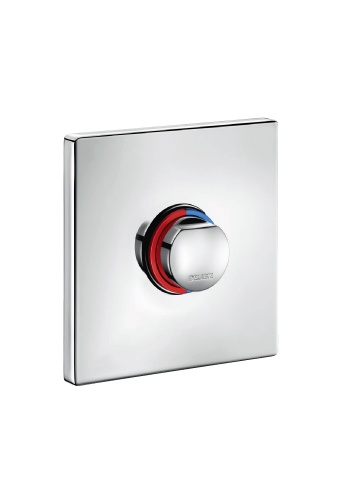

                 TEMPOMATIC 4
                 Electronic shower kit with waterproof housing

                  NEW                                                 • Tamperproof chrome-plated metal control plate Ø 149mm.
                                                                      • Waterproof housing:
                                                                       - Collar with waterproof seal.
                                                                       - Hydraulic connection from the outside and maintenance from the front.
                                                                       - Adjusts to all types of installation (rails, solid walls, panels).
                                                                       - Compatible with wall finishes 10 - 120mm
                                                                          (while maintaining the minimum recessing depth of 93mm).
                                                                       - Suitable for standard or "pipe-in-pipe" supply.
                                                                       - Stopcocks and flow rate adjustment, filter, non-return valve
                                                                          and solenoid valve are all integrated and accessible from the front.
                                                                       - Supplied in 2 kits: secure system flush without sensitive elements.
                                                                      • TEMPOMATIC 4 shower valve M½" for mixed water supply.
                                                                      • Operated by CR123 Lithium 6V batteries or 230/6V mains supply
                                                                       (cable and transformer supplied).
                                                                      • Infrared presence detector, activated by passing hand in front of sensor.
                                                                      • Voluntary activation or automatic shut-off after ~60 seconds.
                                                                      • Duty flush (~60 seconds every 24 hours after last use).
                                                                      • Flow rate 6 lpm at 3 bar (16 lpm for valve without shower head),
                                                                       comfortable rain-effect spray.
                                                                      • Chrome-plated, tamperproof ROUND shower head with automatic flow
                                                                       rate regulation.
                                                                      • Suitable for people with reduced mobility.
                                                                      • 30-year warranty.












                                                                                    Ø 70                   22 35
                                                                                  60
                                                                                                         1/2"
                                                                                    175              90-190
                                                                                                              13
                                                                                       1/2"

                                                                               150                            149

                                                                                       1/2"
                                                                                         443PBOX + 443219





                                                                      Product currently under development.
                                                                      TEMPOMATIC 4 recessed shower - mains supply
                                                                                                                443SBOX
                                                                      Kit with shower head
                                                                                                                + 443229
                                                                                                                443SBOX
                                                                      Valve only without shower head
                                                                                                                + 443228
                                                                      TEMPOMATIC 4 recessed shower - battery-operated
                                                                                                                443PBOX
                                                                      Kit with shower head
                                                                                                                + 443219
                                                                                                                443PBOX
                                                                      Valve only without shower head
                                                                                                                + 443218
                                                                      We recommend installing a TMV (see page 143) & floor trap (see page 131)
