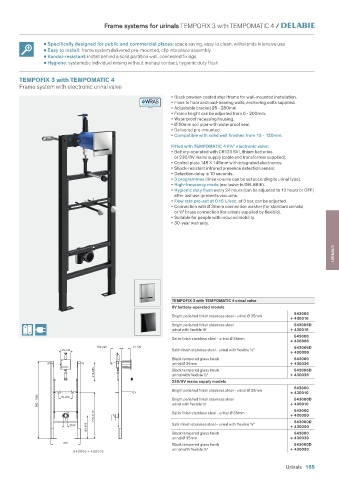

Page 167 - water-controls-for-public-commercial-places

TEMPOFIX 3 with TEMPOMATIC 4 frame systems for urinals /

• Specifically designed for public and commercial places: space saving, easy to clean, withstands intensive use
• Easy to install: frame system delivered pre-mounted, clip into place assembly
• Vandal-resistant: install behind a solid partition wall, concealed fixings
• Hygiene: systematic individual rinsing without manual contact, hygienic duty flush

TEMPOFIX 3 with TEMPOMATIC 4
Frame system with electronic urinal valve
• Black powder-coated steel frame for wall-mounted installation.
• Fixes to floor and load-bearing walls, anchoring bolts supplied.
• Adjustable bracket 100 - 280mm.
• Frame height can be adjusted from 0 - 200mm.
• Waterproof recessing housing.
• Ø 50mm soil pipe with waterproof seal.
• Delivered pre-mounted.
• Compatible with solid wall finishes from 13 - 120mm.
Fitted with TEMPOMATIC 4 F½" electronic valve:
• Battery-operated with CR123 6V Lithium batteries
or 230/6V mains supply (cable and transformer supplied).
• Control plate 145 145mm with integrated electronics.
• Shock-resistant infrared presence detection sensor.
• Detection delay is 10 seconds.
• 3 programmes (rinse volume can be set according to urinal type).
• High-frequency mode (exclusive to DELABIE).
• Hygienic duty flush every 24 hours (can be adjusted to 12 hours or OFF)
after last use: prevents vacuums.
• Flow rate pre-set at 0.15 L/sec. at 3 bar, can be adjusted.
• Connection with Ø 35mm connection washer (for standard urinals)
or ½" brass connection (for urinals supplied by flexible).
• Suitable for people with reduced mobility.
• 30-year warranty.

URINALS

TEMPOFIX 3 with TEMPOMATIC 4 urinal valve
6V battery-operated models
543006
Bright polished finish stainless steel - urinal Ø 35mm
+ 430016
543006D
Bright polished finish stainless steel - urinal with flexible ½"
+ 430016
543006
Satin finish stainless steel - urinal Ø 35mm
+ 430006
160-220 13-120 543006D
145x145 Satin finish stainless steel - urinal with flexible ½"
+ 430006
543006
Black tempered glass finish - urinal Ø 35mm
+ 430036
215-265 Black tempered glass finish - urinal with flexible ½" 543006D
+ 430036
230/6V mains supply models
543000
Bright polished finish stainless steel - urinal Ø 35mm
+ 430010
985 - 1385 95-280 Bright polished finish stainless steel - urinal with flexible ½" 543000D
+ 430010
543000
715-1115 + 430000
Satin finish stainless steel - urinal Ø 35mm
155-555
Ø 50 Satin finish stainless steel - urinal with flexible ½" 543000D
+ 430000
Black tempered glass finish - urinal Ø 35mm 543000
+ 430030
430 543000D
Black tempered glass finish - urinal with flexible ½"
543006 + 430016 + 430030
Urinals 165
