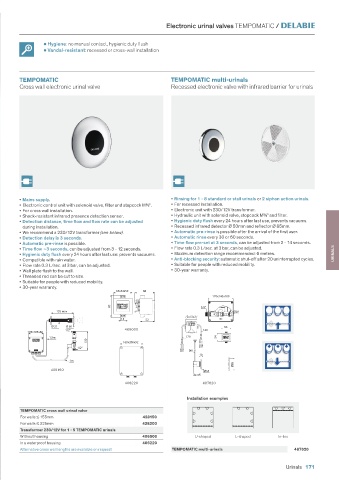

P. 173

TEMPOMATIC electronic urinal valves /

                       •  Hygiene: no manual contact, hygienic duty flush
                       •  Exceptional water savings: 60%
                       •  Vandal-resistant: cross wall or recessed installation



               TEMPOMATIC                                           TEMPOMATIC multi-urinals
               Cross wall electronic urinal valve                   Recessed electronic valve with infrared barrier for urinals

                NEW




















               • Mains supply.                                      • Rinsing for 1 - 8 standard or stall urinals or 2 siphon action urinals.
               • Electronic unit with solenoid valve, filter and stopcock M½".  • For recessed installation.
               • Cross wall installation.                           • Electronic unit with 230/12V transformer.
               • Shock-resistant presence detector.                 • Hydraulic unit with solenoid valve, stopcock M¾" and filter.
               • Detection distance, time flow and flow rate can be adjusted during   • Hygienic duty flush every 24 hours after last use, prevents vacuums.
                installation.                                       • Recessed infrared detector Ø 50mm and reflector Ø 85mm.
               • 230/12V transformer supplied.                      • Automatic pre-rinse can be pre-set upon arrival of the first user.
               • Presence detection delay is 3 seconds.             • Automatic rinse every 30 or 60 seconds.
               • Automatic pre-rinse can be pre-set.                • Time flow pre-set at 3 seconds, can be adjusted from 2 - 14 seconds.
               • Time flow ~3 seconds can be adjusted from 3 - 12 seconds.  • Flow rate 0.3 L/sec. at 3 bar, can be adjusted.
               • High frequency mode (exclusive to DELABIE):        • Maximum detection range recommended: 6 metres.         URINALS
                - short rinse after each user.                      • Anti-blocking security: automatic shut-off after 20 uninterrupted cycles.
                - complementary rinse after busy period.            • Suitable for people with reduced mobility.
               • Hygienic duty flush every 24 hours after last use, prevents vacuums.  • 30-year warranty.
               • Compatible with rain water.
               • Flow rate 0.3 L/sec. at 3 bar, can be adjusted.
               • Escutcheon flush to the wall.
               • Threaded rod can be cut-to-size.
               • Suitable for people with reduced mobility.         Installation examples
               • 30-year warranty.





                                   62                                       U-shaped       L-shaped       In-line
                              1/2"
                                      62
                                                                                       170x140x100
                                     0,5m
                                                                                   3/4"
                              1/2"   0,1m
                                                                                              Ø20
                                            200 max
                                                                             75x75x37
                                     1,5m       Ø 32
                             1,5m         Ø 32  Ø 21
                                                                                           66
                                                     Ø 60                           140
                                                                              170       54
                                      430200
                                                                               5m
                                                                                  10
                                                                                              Ø85
               Product currently under development.                                 Ø65
               TEMPOMATIC cross wall urinal valve                               42-55
               For panels ≤ 30mm                          430100
                                                                                    487620
               For walls ≤ 200 mm                         430200
               Alternative cross wall lengths are available on request   TEMPOMATIC multi-urinals              487620

                                                                                                            Urinals  171
