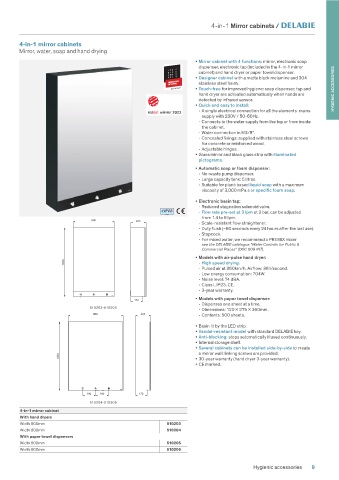

4-in-1 Mirror cabinets /

4-in-1 mirror cabinets
Mirror, water, soap and hand drying

• Mirror cabinet with 4 functions: mirror, electronic soap
dispenser, electronic tap (included in the 4-in-1 mirror
cabinet) and hand dryer or paper towel dispenser.
• Designer cabinet with a matte black melamine and 304
stainless steel finish.
• Touch-free for improved hygiene: soap dispenser, tap and HYGIENIC ACCESSORIES
hand dryer are activated automatically when hands are
detected by infrared sensor.
• Quick and easy to install:
- A single electrical connection for all the elements: mains
supply with 230V / 50 60Hz.
- Connects to the water supply from the top or from inside
the cabinet.
- Water connection in M3/8".
- Concealed fixings: supplied with stainless steel screws
for concrete or reinforced wood.
- Adjustable hinges.
• Glass mirror and black glass strip with illuminated
pictograms.
• Automatic soap or foam dispenser:
- No-waste pump dispenser.
- Large capacity tank: 5 litres.
- Suitable for plant-based liquid soap with a maximum
viscosity of 3,000 mPa.s or specific foam soap.
• Electronic basin tap:
- Reduced stagnation solenoid valve.
- Flow rate pre-set at 3 lpm at 3 bar, can be adjusted
from 1.4 to 6 lpm.
600 223
- Scale-resistant flow straightener.
- Duty flush (~60 seconds every 24 hours after the last use).
- Stopcock.
- For mixed water, we recommend a PREMIX mixer
see the DELABIE catalogue "Water Controls for Public &
Commercial Places" (DOC 609 INT).
• Models with air-pulse hand dryer:
1000 - High speed drying.
- Pulsed air at 360km/h. Airflow: 36 l/second.
- Low energy consumption: 704W.
- Noise level: 74 dBA.
- Class I, IP23. CE.
- 3-year warranty.
• Models with paper towel dispenser:
172
- Dispenses one sheet at a time.
510203 510205
- Dimensions: 120 275 360mm.
- Contents: 500 sheets.
800 223
• Basin lit by the LED strip.
• Vandal-resistant model with standard DELABIE key.
• Anti-blocking: stops automatically if used continuously.
• Internal storage shelf.
• Several cabinets can be installed side-by-side to create
a mirror wall: linking screws are provided.
1000 • 30-year warranty (hand dryer 3-year warranty).
• CE marked.

190 190 172
510204 510206
4-in-1 mirror cabinet
With hand dryers
Width 600mm 510203
Width 800mm 510204
With paper towel dispensers
Width 600mm 510205
Width 800mm 510206

Hygienic accessories 9
