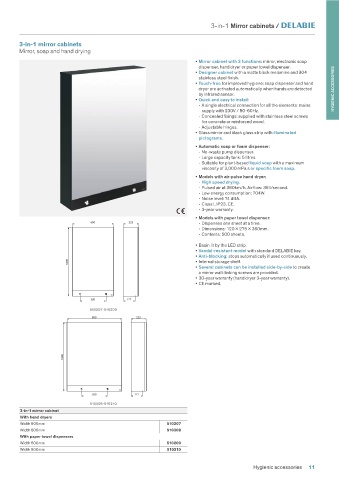

Page 13 - Accessibility-Hygienic-Accessories

3-in-1 Mirror cabinets /

3-in-1 mirror cabinets
Mirror, soap and hand drying

• Mirror cabinet with 3 functions: mirror, electronic soap
dispenser, hand dryer or paper towel dispenser.
• Designer cabinet with a matte black melamine and 304
stainless steel finish.
• Touch-free for improved hygiene: soap dispenser and hand
dryer are activated automatically when hands are detected HYGIENIC ACCESSORIES
by infrared sensor.
• Quick and easy to install:
- A single electrical connection for all the elements: mains
supply with 230V / 50 60Hz.
- Concealed fixings: supplied with stainless steel screws
for concrete or reinforced wood.
- Adjustable hinges.
• Glass mirror and black glass strip with illuminated
pictograms.
• Automatic soap or foam dispenser:
- No-waste pump dispenser.
- Large capacity tank: 5 litres.
- Suitable for plant-based liquid soap with a maximum
viscosity of 3,000 mPa.s or specific foam soap.

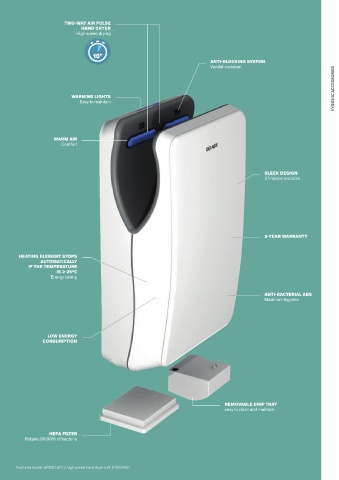

• Models with air-pulse hand dryer:
- High speed drying.
- Pulsed air at 360km/h. Airflow: 36 l/second.
- Low energy consumption: 704W.
- Noise level: 74 dBA.
- Class I, IP23. CE.
- 3-year warranty.
• Models with paper towel dispenser:
- Dispenses one sheet at a time.
600 223
- Dimensions: 120 275 360mm.
- Contents: 500 sheets.
• Basin lit by the LED strip.
• Vandal-resistant model with standard DELABIE key.
• Anti-blocking: stops automatically if used continuously.
1000 • Internal storage shelf.
• Several cabinets can be installed side-by-side to create
a mirror wall: linking screws are provided.
• 30-year warranty (hand dryer 3-year warranty).
• CE marked.

380 172
510207 510209
800 223

1000

380 172
510208 510210
3-in-1 mirror cabinet
With hand dryers
Width 600mm 510207
Width 800mm 510208
With paper towel dispensers
Width 600mm 510209
Width 800mm 510210

Hygienic accessories 11
