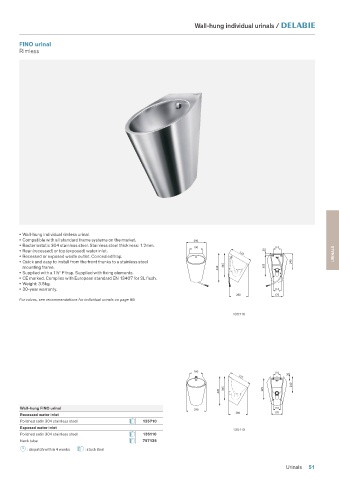

Page 53 - Stainless_Steel_Sanitary_Ware

Wall-hung individual urinals /

FINO urinal
Rimless

• Wall-hung individual rimless urinal.
• Compatible with all standard frame systems on the market. 290 290
290
• Bacteriostatic 304 stainless steel. Stainless steel thickness: 1.2mm. 190 190 110 110
110
190
• Rear (recessed) or top (exposed) water inlet. 30 30 30
325 325 URINALS
325
• Recessed or exposed waste outlet. Concealed trap.
• Quick and easy to install from the front thanks to a stainless steel 240 240 240
mounting frame. 420 420 420 345 345 345 305 305 305
• Supplied with a 1½" P trap. Supplied with fixing elements.
• CE marked. Complies with European standard EN 13407 for 2L flush.
• Weight: 3.5kg.
• 30-year warranty. 110 110
110
170
280 280 170 170
280
For valves, see recommendations for individual urinals on page 59.
135710

190 110
30
325
240
345 305
420

Wall-hung FINO urinal 290 110
Recessed water inlet 280 170
Polished satin 304 stainless steel 135710
Exposed water inlet
135110
Polished satin 304 stainless steel 135110
Neck tube 757135
: dispatch within 4 weeks : stock item

Urinals 51
