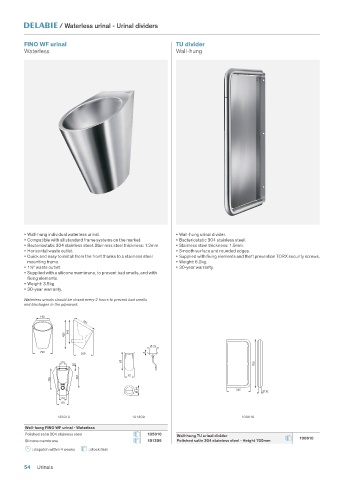

Page 56 - Stainless_Steel_Sanitary_Ware

/ Waterless urinal - Urinal dividers

FINO WF urinal TU divider
Waterless Wall-hung

• Wall-hung individual waterless urinal. • Wall-hung urinal divider.
• Compatible with all standard frame systems on the market. • Bacteriostatic 304 stainless steel.
• Bacteriostatic 304 stainless steel. Stainless steel thickness: 1.2mm. • Stainless steel thickness: 1.5mm.
• Horizontal waste outlet. • Smooth surface and rounded edges.
• Quick and easy to install from the front thanks to a stainless steel • Supplied with fixing elements and theft prevention TORX security screws.
mounting frame. • Weight: 6.2kg.
• 1½" waste outlet. • 30-year warranty.
• Supplied with a silicone membrane, to prevent bad smells, and with
fixing elements.
• Weight: 3.5kg.
• 30-year warranty.

Waterless urinals should be rinsed every 2 hours to prevent bad smells
and blockages in the pipework.

190 110
30
325
345 305 307
420
Ø 25
290 110
280 4
170
190 110 63
30 700
325
345 305 307 32
420
Ø 34 345 Ø 32
290 110
280
170
135010 101309 100610
Wall-hung FINO WF urinal - Waterless
Polished satin 304 stainless steel 135010 Wall-hung TU urinal divider
Silicone membrane 101309 Polished satin 304 stainless steel - Height 700mm 100610
: dispatch within 4 weeks : stock item

54 Urinals
