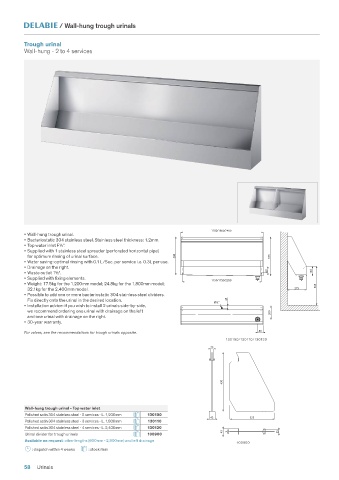

Page 60 - Stainless_Steel_Sanitary_Ware

/ Wall-hung trough urinals

Trough urinal
Wall-hung - 2 to 4 services

1200/1800/24001200/1800/2400
• Wall-hung trough urinal.
• Bacteriostatic 304 stainless steel. Stainless steel thickness: 1.2mm.
• Top water inlet F½".
• Supplied with 1 stainless steel spreader (perforated horizontal pipe)
for optimum rinsing of urinal surface. 560 560 575 575
• Water saving: optimal rinsing with 0.1 L/Sec. per service i.e. 0.3L per use.
• Drainage on the right.
• Waste outlet 1½". 60 60 140 140
• Supplied with fixing elements. 1150/1750/23501150/1750/2350
• Weight: 17.5kg for the 1,200mm model; 24.8kg for the 1,800mm model; 565 565
32.1kg for the 2,400mm model. 275 275
• Possible to add one or more bacteriostatic 304 stainless steel dividers.
Fix directly onto the urinal in the desired location. ؽ" ؽ" 35 35
• Installation advice: if you wish to install 2 urinals side-by-side,
we recommend ordering one urinal with drainage on the left 200 200
and one urinal with drainage on the right.
• 30-year warranty.
For valves, see the recommendations for trough urinals opposite. 80 80
130100/130110/130120
25

430

Wall-hung trough urinal - Top water inlet
Polished satin 304 stainless steel - 2 services - L. 1,200mm 130100
43 325
Polished satin 304 stainless steel - 3 services - L. 1,800mm 130110
Polished satin 304 stainless steel - 4 services - L. 2,400mm 130120
Urinal divider for trough urinals 100900 43 3 25
Available on request: other lengths (600mm - 2,900mm) and left drainage
100900
: dispatch within 4 weeks : stock item

58 Urinals
