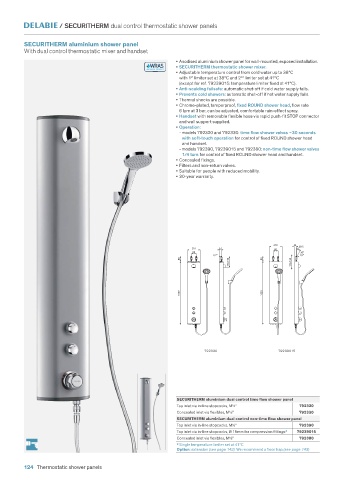

Page 126 - water-controls-for-healthcare
P. 126
/ SECURITHERM dual control thermostatic shower panels
SECURITHERM aluminium shower panel
With dual control thermostatic mixer and handset
• Anodised aluminium shower panel for wall-mounted, exposed installation.
• SECURITHERM thermostatic shower mixer.
• Adjustable temperature control from cold water up to 38°C
st
with 1 limiter set at 38°C and 2 limiter set at 41°C
nd
(except for ref. 79239015: temperature limiter fixed at 41°C).
• Anti-scalding failsafe: automatic shut-off if cold water supply fails.
• Prevents cold showers: automatic shut-off if hot water supply fails.
• Thermal shocks are possible.
• Chrome-plated, tamperproof, fixed ROUND shower head, flow rate
6 lpm at 3 bar, can be adjusted, comfortable rain-effect spray.
• Handset with removable flexible hose via rapid push-fit STOP connector
and wall support supplied.
• Operation:
- models 792320 and 792330: time flow shower valves ~30 seconds
with soft-touch operation for control of fixed ROUND shower head
and handset.
- models 792390, 79239015 and 792380: non-time flow shower valves
1/4 turn for control of fixed ROUND shower head and handset.
• Concealed fixings.
• Filters and non-return valves.
• Suitable for people with reduced mobility.
• 30-year warranty.
210 34
Ø15
210 34
80
80 30°
1/2" 1/2"
170-190 170-190
80 80
1050 1050
792320 79239015
SECURITHERM aluminium dual control time flow shower panel
Top inlet via in-line stopcocks, M½" 792320
Concealed inlet via flexibles, M½" 792330
SECURITHERM aluminium dual control non-time flow shower panel
Top inlet via in-line stopcocks, M½" 792390
Top inlet via in-line stopcocks, Ø 15mm for compression fittings* 79239015
Concealed inlet via flexibles, M½" 792380
* Single temperature limiter set at 41°C
Option: extension (see page 142). We recommend a floor trap (see page 143)
