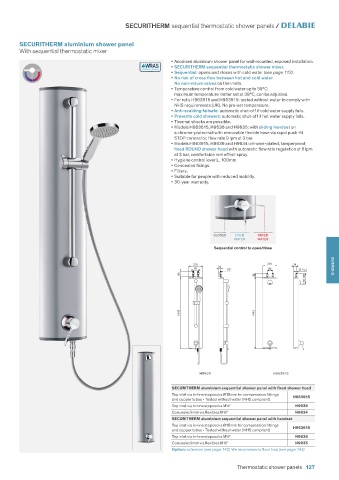

SECURITHERM sequential thermostatic shower panels /
SECURITHERM aluminium shower panel
With sequential thermostatic mixer
• Anodised aluminium shower panel for wall-mounted, exposed installation.
• SECURITHERM sequential thermostatic shower mixer.
• Sequential: opens and closes with cold water (see page 112).
• No risk of cross flow between hot and cold water.
No non-return valves on the inlets.
• Temperature control from cold water up to 39°C:
maximum temperature limiter set at 39°C, can be adjusted.
• For ref.s H963615 and H963915: tested without water to comply with
NHS requirements (UK). No pre-set temperature.
• Anti-scalding failsafe: automatic shut-off if cold water supply fails.
• Prevents cold showers: automatic shut-off if hot water supply fails.
• Thermal shocks are possible.
• Models H963615, H9636 and H9635: with sliding handset on
a chrome-plated rail with removable flexible hose via rapid push-fit
STOP connector, flow rate 9 lpm at 3 bar.
• Models H963915, H9639 and H9634: chrome-plated, tamperproof,
fixed ROUND shower head with automatic flow rate regulation at 6 lpm
at 3 bar, comfortable rain effect spray.
• Hygiene control lever L. 100mm.
• Concealed fixings.
• Filters.
• Suitable for people with reduced mobility.
• 30-year warranty.
CLOSED COLD MIXED
WATER WATER
Sequential control to open/close
210 210 34
34 SHOWERS
80 80
1/2" Ø 15,2
80 55
170-190
1045 1045
H9636 H963915
SECURITHERM aluminium sequential shower panel with fixed shower head
Top inlet via in-line stopcocks Ø15mm for compression fittings H963915
and copper tubes - Tested without water (NHS compliant)
Top inlet via in-line stopcocks M½" H9639
Concealed inlet via flexibles M½" H9634
SECURITHERM aluminium sequential shower panel with handset
Top inlet via in-line stopcocks Ø15mm for compression fittings H963615
and copper tubes - Tested without water (NHS compliant)
Top inlet via in-line stopcocks M½" H9636
Concealed inlet via flexibles M½" H9635
Option: extension (see page 142). We recommend a floor trap (see page 143)
