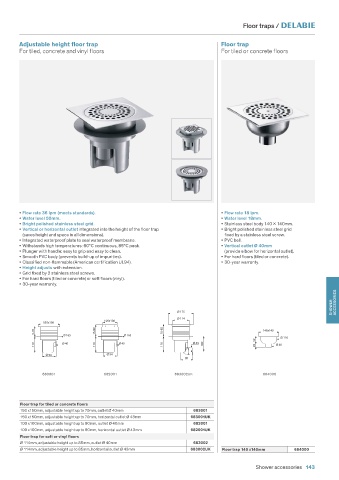

Page 145 - water-controls-for-healthcare

Floor traps /

Adjustable height floor trap Floor trap
For tiled, concrete and vinyl floors For tiled or concrete floors

• Flow rate 36 lpm (meets standards). • Flow rate 18 lpm.
• Water level 50mm. • Water level 18mm.
• Bright polished stainless steel grid. • Stainless steel body 140 140mm.
• Vertical or horizontal outlet integrated into the height of the floor trap • Bright polished stainless steel grid
(saves height and space in all dimensions). fixed by a stainless steel screw.
• Integrated waterproof plate to seal waterproof membrane. • PVC bell.
• Withstands high temperatures: 60°C continuous, 85°C peak. • Vertical outlet Ø 40mm
• Plunger with handle: easy to grip and easy to clean. (provide elbow for horizontal outlet).
• Smooth PVC body (prevents build-up of impurities). • For hard floors (tiled or concrete).
• Classified non-flammable (American certification UL94). • 30-year warranty.
• Height adjusts with extension.
• Grid fixed by 2 stainless steel screws.
• For hard floors (tiled or concrete) or soft floors (vinyl).
• 30-year warranty.

SHOWER ACCESSORIES

Ø
Ø 175
175
114
Ø
Ø 114
100x100
100x100
150x150
150x150
5-70 5-70 15-80 15-80 10-85 10-85 140x140
140x140
Ø 165
Ø 165 Ø 165
Ø 165
Ø 110
Ø 110
52 52
Ø 43
Ø 40
Ø 40
110 110 Ø 40 110 110 Ø 40 110 110 Ø 43 100 100 23 23 Ø 40
Ø 40
Ø 94
Ø 94 Ø 94
Ø 94
80
80
0
0
0
0
6
U
2
4
8
2
0
0
3
8
8
8
3
0
6 6830011 6 682001 1 6 683002UK K 684000 0
0
Floor trap for tiled or concrete floors
150 x150mm, adjustable height up to 70mm, outlet Ø 40mm 683001
150 x150mm, adjustable height up to 70mm, horizontal outlet Ø 43mm 683001UK
100 x100mm, adjustable height up to 80mm, outlet Ø 40mm 682001
100 x100mm, adjustable height up to 80mm, horizontal outlet Ø 43mm 682001UK
Floor trap for soft or vinyl floors
Ø 114mm, adjustable height up to 85mm, outlet Ø 40mm 683002
Ø 114mm, adjustable height up to 85mm, horizontal outlet Ø 43mm 683002UK Floor trap 140 x140mm 684000
Shower accessories 143
