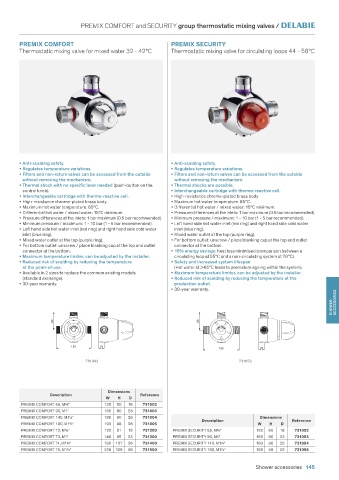

PREMIX COMFORT and SECURITY group thermostatic mixing valves /

PREMIX COMFORT PREMIX SECURITY
Thermostatic mixing valve for mixed water 32 - 42°C Thermostatic mixing valve for circulating loops 44 - 58°C

• Anti-scalding safety. • Anti-scalding safety.
• Regulates temperature variations. • Regulates temperature variations.
• Filters and non-return valves can be accessed from the outside • Filters and non-return valves can be accessed from the outside
without removing the mechanism. without removing the mechanism.
• Thermal shock with no specific lever needed (push-button on the • Thermal shocks are possible.
control knob). • Interchangeable cartridge with thermo-reactive cell.
• Interchangeable cartridge with thermo-reactive cell. • High-resistance chrome-plated brass body.
• High-resistance chrome-plated brass body. • Maximum hot water temperature: 85°C.
• Maximum hot water temperature: 85°C. • Differential hot water / mixed water: 15°C minimum.
• Differential hot water / mixed water: 15°C minimum. • Pressure differences at the inlets: 1 bar maximum (0.5 bar recommended).
• Pressure differences at the inlets: 1 bar maximum (0.5 bar recommended). • Minimum pressure / maximum: 1 - 10 bar (1 - 5 bar recommended).
• Minimum pressure / maximum: 1 - 10 bar (1 - 5 bar recommended). • Left hand side hot water inlet (red ring) and right hand side cold water
• Left hand side hot water inlet (red ring) and right hand side cold water inlet (blue ring).
inlet (blue ring). • Mixed water outlet at the top (purple ring).
• Mixed water outlet at the top (purple ring). • For bottom outlet: unscrew / place blanking cap at the top and outlet
• For bottom outlet: unscrew / place blanking cap at the top and outlet connector at the bottom.
connector at the bottom. • 15% energy savings: heat loss minimised (comparison between a
• Maximum temperature limiter, can be adjusted by the installer. circulating loop at 55°C and a non-circulating system at 70°C).
• Reduced risk of scalding by reducing the temperature • Safety and increased system lifespan
at the point-of-use. (Hot water at >65°C leads to premature ageing within the system).
• Available in 2 sizes to replace the common existing models • Maximum temperature limiter, can be adjusted by the installer.
(standard exchange). • Reduced risk of scalding by reducing the temperature at the
• 30-year warranty. production outlet.
• 30-year warranty.
SHOWER ACCESSORIES

60 60

120 18
120 18
731002 731052

Dimensions
Description Reference
W H D
PREMIX COMFORT 55, M¾" 120 60 18 731002
PREMIX COMFORT 90, M1" 160 80 23 731003
PREMIX COMFORT 140, M1¼" 180 90 26 731004 Dimensions
Description Reference
PREMIX COMFORT 190, M1½" 195 98 26 731005 W H D
PREMIX COMFORT T2, M¾" 120 81 18 731200 PREMIX SECURITY 55, M¾" 120 60 18 731052
PREMIX COMFORT T3, M1" 146 95 23 731300 PREMIX SECURITY 90, M1" 160 80 23 731053
PREMIX COMFORT T4, M1¼" 180 107 26 731400 PREMIX SECURITY 140, M1¼" 180 90 26 731054
PREMIX COMFORT T5, M1½" 218 129 26 731500 PREMIX SECURITY 190, M1½" 196 98 26 731055

Shower accessories 145
