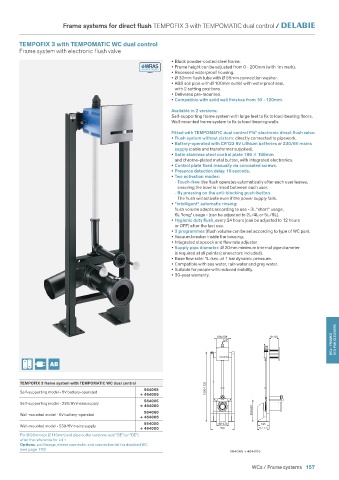

Frame systems for direct flush TEMPOFIX 3 with TEMPOMATIC dual control /

TEMPOFIX 3 with TEMPOMATIC WC dual control
Frame system with electronic flush valve

• Black powder-coated steel frame.
• Frame height can be adjusted from 0 - 200mm (with 1m mark).
• Recessed waterproof housing.
• Ø 32mm flush tube with Ø 55mm connection washer.
• ABS soil pipe with Ø 100mm outlet with waterproof seal,
with 2 setting positions.
• Delivered pre-mounted.
• Compatible with solid wall finishes from 10 - 120mm.
Available in 2 versions:
Self-supporting frame system with large feet to fix to load-bearing floors.
Wall-mounted frame system to fix to load-bearing walls.
Fitted with TEMPOMATIC dual control F¾" electronic direct flush valve:
• Flush system without cistern: directly connected to pipework.
• Battery-operated with CR123 6V Lithium batteries or 230/6V mains
supply (cable and transformer supplied).
• Satin stainless steel control plate 186 186mm
and chrome-plated metal button, with integrated electronics.
• Control plate fixed manually via concealed screws.
• Presence detection delay: 10 seconds.
• Two activation modes:
- Touch-free: the flush operates automatically after each user leaves,
ensuring the bowl is rinsed between each user.
- By pressing on the anti-blocking push-button.
The flush will activate even if the power supply fails.
• "Intelligent" automatic rinsing:
flush volume adapts according to use - 3L "short" usage,
6L "long" usage - (can be adjusted to 2L/4L or 5L/9L).
• Hygienic duty flush, every 24 hours (can be adjusted to 12 hours
or OFF) after the last use.
• 3 programmes (flush volume can be set according to type of WC pan).
• Vacuum breaker inside the housing.
• Integrated stopcock and flow rate adjuster.
• Supply pipe diameter: Ø 20mm minimum internal pipe diameter
is required at all points (connectors included).
• Base flow rate: 1L/sec. at 1 bar dynamic pressure.
• Compatible with sea water, rain water and grey water.
• Suitable for people with reduced mobility.
• 30-year warranty.

WCs - FRAMES
186x186 10-120
3/4" BED PAN CLEANERS

TEMPOFIX 3 frame system with TEMPOMATIC WC dual control
564065 1000-1320
Self-supporting model - 6V battery-operated
+ 464006
564005
Self-supporting model - 230/6V mains supply
+ 464000
564060 300-620
Wall-mounted model - 6V battery-operated
+ 464006
564000 180-230 165
Wall-mounted model - 230/6V mains supply
+ 464000 350 157-177
For Ø 90mm (or Ø 110mm) soil pipe outlet versions: add "BE" (or "DE")
after the reference for kit 1
Options: wall fixings, sleeve connector and connection kit for disabled WC
(see page 170)
564065 + 464006
WCs / Frame systems 157
