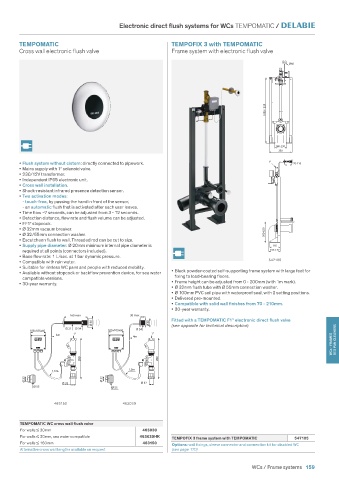

Electronic direct flush systems for WCs TEMPOMATIC /

TEMPOMATIC TEMPOFIX 3 with TEMPOMATIC
Cross wall electronic flush valve Frame system with electronic flush valve

Ø60

1000-1320

180-230
350

• Flush system without cistern: directly connected to pipework. 1" 70-210
• Mains supply with 1" solenoid valve.
• 230/12V transformer.
• Independent IP65 electronic unit.
• Cross wall installation.
• Shock-resistant infrared presence detection sensor.
• Two activation modes:
- touch-free, by passing the hand in front of the sensor,
- an automatic flush that is activated after each user leaves.
• Time flow ~7 seconds, can be adjusted from 3 - 12 seconds.
• Detection distance, flow rate and flush volume can be adjusted.
• FF1" stopcock.
• Ø 32mm vacuum breaker.
• Ø 32/55mm connection washer. 300-620
• Escutcheon flush to wall. Threaded rod can be cut to size.
• Supply pipe diameter: Ø 20mm minimum internal pipe diameter is 165
required at all points (connectors included). 157-177
• Base flow rate: 1 L/sec. at 1 bar dynamic pressure.
• Compatible with rain water. 547105
• Suitable for rimless WC pans and people with reduced mobility.
• Available without stopcock or backflow prevention device, for sea water • Black powder-coated self-supporting frame system with large feet for
compatible versions. fixing to load-bearing floors.
• 30-year warranty. • Frame height can be adjusted from 0 - 200mm (with 1m mark).
• Ø 32mm flush tube with Ø 55mm connection washer.
• Ø 100mm PVC soil pipe with waterproof seal, with 2 setting positions.
• Delivered pre-mounted.
• Compatible with solid wall finishes from 70 - 210mm.
• 30-year warranty.
160 max 30 max
Fitted with a TEMPOMATIC F1" electronic direct flush valve
Ø 60 Ø 60 (see opposite for technical description).
Ø 21 Ø 34 Ø 34
105x105x60 105x105x60
WCs - FRAMES
4m 1" 1"
4m BED PAN CLEANERS
280 280

1,5m 1,5m
Ø 32 Ø 32
Ø 32 Ø 32
Ø 55 Ø 55

463150 463030

TEMPOMATIC WC cross wall flush valve
For walls ≤ 30mm 463030
For walls ≤ 30mm, sea water compatible 463030HK TEMPOFIX 3 frame system with TEMPOMATIC 547105
For walls ≤ 160mm 463150 Options: wall fixings, sleeve connector and connection kit for disabled WC
Alternative cross wall lengths available on request (see page 170)
