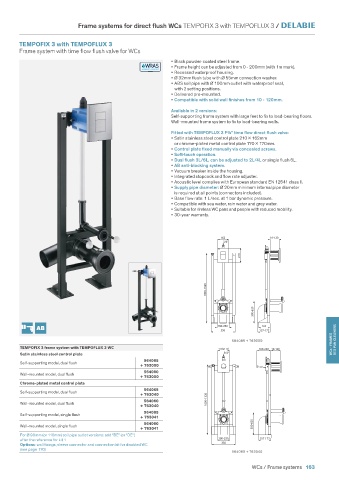

Frame systems for direct flush WCs TEMPOFIX 3 with TEMPOFLUX 3 /


            TEMPOFIX 3 with TEMPOFLUX 3
            Frame system with time flow flush valve for WCs

                                                                 • Black powder-coated steel frame.
                                                                 • Frame height can be adjusted from 0 - 200mm (with 1m mark).
                                                                 • Recessed waterproof housing.
                                                                 • Ø 32mm flush tube with Ø 55mm connection washer.
                                                                 • ABS soil pipe with Ø 100mm outlet with waterproof seal,
                                                                  with 2 setting positions.
                                                                 • Delivered pre-mounted.
                                                                 • Compatible with solid wall finishes from 10 - 120mm.
                                                                 Available in 2 versions:
                                                                 Self-supporting frame system with large feet to fix to load-bearing floors.
                                                                 Wall-mounted frame system to fix to load-bearing walls.
                                                                 Fitted with TEMPOFLUX 3 F¾" time flow direct flush valve:
                                                                 • Satin stainless steel control plate 210   162mm
                                                                  or chrome-plated metal control plate 170   170mm.
                                                                 • Control plate fixed manually via concealed screws.
                                                                 • Soft-touch operation.
                                                                 • Dual flush 3L/6L, can be adjusted to 2L/4L or single flush 6L.
                                                                 • AB anti-blocking system.
                                                                 • Vacuum breaker inside the housing.
                                                                 • Integrated stopcock and flow rate adjuster.
                                                                 • Acoustic level complies with European standard EN 12541 class II.
                                                                 • Supply pipe diameter: Ø 20mm minimum internal pipe diameter
                                                                  is required at all points (connectors included).
                                                                 • Base flow rate: 1 L/sec. at 1 bar dynamic pressure.
                                                                 • Compatible with sea water, rain water and grey water.
                                                                 • Suitable for rimless WC pans and people with reduced mobility.
                                                                 • 30-year warranty.



                                                                                   162              10-120
                                                                                    3/4"

                                                                                         210




                                                                              1000-1320



                                                                                              300-620


                                                                                  180-230        165
                                                                                   350          157-177
                                                                                       564065 + 763000                     BED PAN CLEANERS
            TEMPOFIX 3 frame system with TEMPOFLUX 3 WC                           170x170       160-220 10-120            WCs - FRAMES
            Satin stainless steel control plate                                     3/4"
                                                        564065
            Self-supporting model, dual flush
                                                      + 763000
                                                        564060
            Wall-mounted model, dual flush
                                                      + 763000
            Chrome-plated metal control plate
                                                        564065
            Self-supporting model, dual flush
                                                      + 763040
                                                        564060                1000-1320
            Wall-mounted model, dual flush
                                                      + 763040
                                                        564065
            Self-supporting model, single flush
                                                      + 763041
                                                        564060                                300-620
            Wall-mounted model, single flush
                                                      + 763041
            For Ø 90mm (or 110mm) soil pipe outlet versions: add "BE" (or "DE")
            after the reference for kit 1                                         180-230       157-177
            Options: wall fixings, sleeve connector and connection kit for disabled WC    350
            (see page 170)
                                                                                       564060 + 763040
