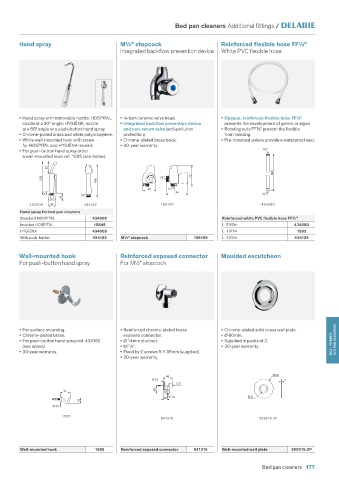

Page 179 - water-controls-for-healthcare

Bed pan cleaners Additional fittings /

Hand spray M½" stopcock Reinforced flexible hose FF½"
Integrated backflow prevention device White PVC flexible hose

• Hand spray with removable nozzle: HOSPITAL, • ¼-turn ceramic valve head. • Opaque, reinforced flexible hose FF½"
nozzle at a 30° angle; HYGIÉNA, nozzle • Integrated backflow prevention device prevents the development of germs or algae.
at a 65° angle or a push-button hand spray. and non-return valve (anti-pollution • Rotating nuts FF½" prevent the flexible
• Chrome-plated brass and white polypropylene. protection). from twisting.
• White wall-mounted hook with screw • Chrome-plated brass body. • Pre-mounted unions provide a waterproof seal.
for HOSPITAL and HYGIÉNA models. • 30-year warranty.
• For push-button hand spray order 1/2"
a wall-mounted hook ref. 1585 (see below).

82
800
228 168 1/2" 73

45 1/2"
1/2" 74 1/2"
1/2"
53
434000 49 434182 158100 434080
Hand spray for bed pan cleaners
Standard HOSPITAL 434000 Reinforced white PVC flexible hose FF½"
Inverted HOSPITAL 15846 L. 0.80m 434080
HYGIÉNA 434065 L. 1.00m 1583
With push-button 434182 M½" stopcock 158100 L. 1.25m 434125

Wall-mounted hook Reinforced exposed connector Moulded escutcheon
For push-button hand spray For M½" stopcock

• For surface mounting. • Reinforced chrome-plated brass • Chrome-plated solid brass wall plate.
• Chrome-plated brass. exposed connector. • Ø 60mm.
• For push-button hand spray ref. 434182 • Ø 14mm stud nut. • Supplied in packs of 2. BED PAN CLEANERS
(see above). • MF½". • 30-year warranty. WCs - FRAMES
• 30-year warranty. • Fixed by 2 screws 5 35mm (supplied).
• 30-year warranty.

Ø 60
46
Ø 55 2
1/2"
35 40
20 Ø 14 Ø 21
18
Ø 35
1585
841315 292015.2P

Wall-mounted hook 1585 Reinforced exposed connector 841315 Wall-mounted wall plate 292015.2P

Bed pan cleaners 177
