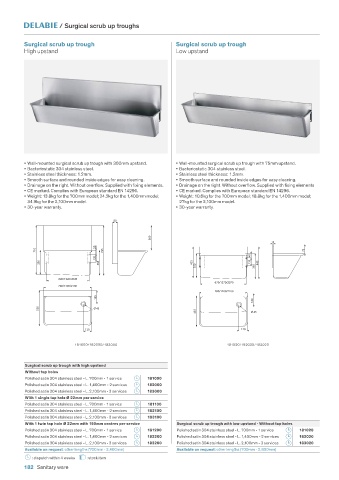

Page 184 - water-controls-for-healthcare

/ Surgical scrub up troughs

Surgical scrub up trough Surgical scrub up trough
High upstand Low upstand

• Wall-mounted surgical scrub up trough with 360mm upstand. • Wall-mounted surgical scrub up trough with 75mm upstand.
• Bacteriostatic 304 stainless steel. • Bacteriostatic 304 stainless steel.
• Stainless steel thickness: 1.2mm. • Stainless steel thickness: 1.2mm.
• Smooth surface and rounded inside edges for easy cleaning. • Smooth surface and rounded inside edges for easy cleaning.
• Drainage on the right. Without overflow. Supplied with fixing elements. • Drainage on the right. Without overflow. Supplied with fixing elements
• CE marked. Complies with European standard EN 14296. • CE marked. Complies with European standard EN 14296.
• Weight: 13.8kg for the 700mm model; 24.2kg for the 1,400mm model; • Weight: 10.6kg for the 700mm model; 18.8kg for the 1,400mm model;
34.9kg for the 2,100mm model. 27kg for the 2,100mm model.
• 30-year warranty. • 30-year warranty.

80

360
15
50
710 725 75
40
120
350 365 425 135 440
350 365
620/1320/2020
670/1370/2070
700/1400/2100
700/1400/2100
195
130
520 Ø 45
455 Ø 45

120 120

181000/182000/183000 181020/182020/183020

Surgical scrub up trough with high upstand
Without tap holes
Polished satin 304 stainless steel - L. 700mm - 1 service 181000
Polished satin 304 stainless steel - L. 1,400mm - 2 services 182000
Polished satin 304 stainless steel - L. 2,100mm - 3 services 183000
With 1 single tap hole Ø 22mm per service
Polished satin 304 stainless steel - L. 700mm - 1 service 181100
Polished satin 304 stainless steel - L. 1,400mm - 2 services 182100
Polished satin 304 stainless steel - L. 2,100mm - 3 services 183100
With 1 twin tap hole Ø 22mm with 150mm centres per service Surgical scrub up trough with low upstand - Without tap holes
Polished satin 304 stainless steel - L. 700mm - 1 service 181200 Polished satin 304 stainless steel - L. 700mm - 1 service 181020
Polished satin 304 stainless steel - L. 1,400mm - 2 services 182200 Polished satin 304 stainless steel - L. 1,400mm - 2 services 182020
Polished satin 304 stainless steel - L. 2,100mm - 3 services 183200 Polished satin 304 stainless steel - L. 2,100mm - 3 services 183020
Available on request: other lengths (700mm - 2,400mm) Available on request: other lengths (700mm - 2,800mm)
: dispatch within 4 weeks : stock item
182 Sanitary ware
