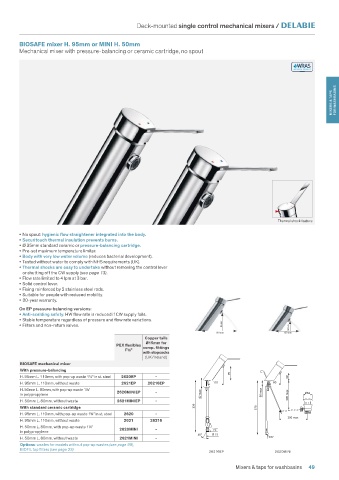

Deck-mounted single control mechanical mixers /

BIOSAFE mixer H. 95mm or MINI H. 50mm
Mechanical mixer with pressure-balancing or ceramic cartridge, no spout

MIXERS & TAPS FOR WASHBASINS

Thermal shock feature

• No spout: hygienic flow straightener integrated into the body.
• Securitouch thermal insulation prevents burns.
• Ø 35mm standard ceramic or pressure-balancing cartridge.
• Pre-set maximum temperature limiter.
• Body with very low water volume (reduces bacterial development).
• Tested without water to comply with NHS requirements (UK).
• Thermal shocks are easy to undertake without removing the control lever
or shutting off the CW supply (see page 13).
• Flow rate limited to 4 lpm at 3 bar.
• Solid control lever.
• Fixing reinforced by 2 stainless steel rods.
• Suitable for people with reduced mobility.
• 30-year warranty.
On EP pressure-balancing versions:
• Anti-scalding safety: HW flow rate is reduced if CW supply fails.
• Stable temperature regardless of pressure and flow rate variations.
• Filters and non-return valves. 95 mm
50 mm
190 mm 130 mm
Copper tails
Ø15mm for
PEX flexibles comp. fittings
F⅜"
with stopcocks
(UK/Ireland)
BIOSAFE mechanical mixer
With pressure-balancing
95
H. 95mm L. 110mm, with pop-up waste 1¼" in st. steel 2620EP - 50
H. 95mm L. 110mm, without waste 2621EP 26216EP 110 80
H. 50mm L. 80mm, with pop-up waste 1¼"
in polypropylene 2620MINIEP - 40 max 60 max 300 max Ø62
H. 50mm L. 80mm, without waste 2621MINIEP -
With standard ceramic cartridge 339 370
H. 95mm L. 110mm, with pop-up waste 1¼" in st. steel 2620 -
200 max
H. 95mm L. 110mm, without waste 2621 26216
H. 50mm L. 80mm, with pop-up waste 1¼" 2620MINI -
in polypropylene 1/2"
30° Ø 15
H. 50mm L. 80mm, without waste 2621MINI - 3/8"
Options: wastes for models without pop-up wastes (see page 99),
BIOFIL tap filters (see page 23)
26216EP 2620MINI
Mixers & taps for washbasins 49
