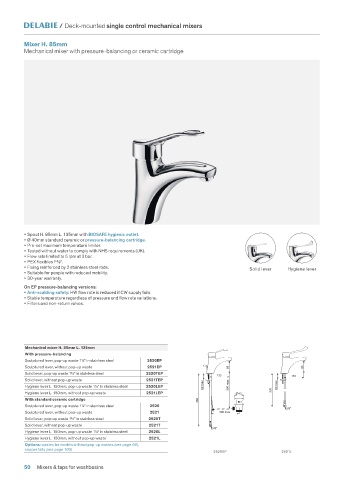

/ Deck-mounted single control mechanical mixers

Mixer H. 85mm
Mechanical mixer with pressure-balancing or ceramic cartridge

• Spout H. 85mm L. 135mm with BIOSAFE hygienic outlet.
• Ø 40mm standard ceramic or pressure-balancing cartridge.
• Pre-set maximum temperature limiter.
• Tested without water to comply with NHS requirements (UK).
• Flow rate limited to 5 lpm at 3 bar.
• PEX flexibles F⅜".
• Fixing reinforced by 2 stainless steel rods. Solid lever Hygiene lever
• Suitable for people with reduced mobility.
• 30-year warranty.
On EP pressure-balancing versions:
• Anti-scalding safety: HW flow rate is reduced if CW supply fails.
• Stable temperature regardless of pressure and flow rate variations.
• Filters and non-return valves.

Mechanical mixer H. 85mm L. 135mm
With pressure-balancing
Sculptured lever, pop-up waste 1¼" in stainless steel 2520EP
Sculptured lever, without pop-up waste 2521EP 85 85
Solid lever, pop-up waste 1¼" in stainless steel 2520TEP
135 135
Solid lever, without pop-up waste 2521TEP
Hygiene lever L. 150mm, pop-up waste 1¼" in stainless steel 2520LEP 60 max 300 max 60 max
Hygiene lever L. 150mm, without pop-up waste 2521LEP Ø 62 330
With standard ceramic cartridge 360
Sculptured lever, pop-up waste 1¼" in stainless steel 2520
3/8"
Sculptured lever, without pop-up waste 2521 200 max
Solid lever, pop-up waste 1¼" in stainless steel 2520T
Solid lever, without pop-up waste 2521T
3/8"
Hygiene lever L. 150mm, pop-up waste 1¼" in stainless steel 2520L
Hygiene lever L. 150mm, without pop-up waste` 2521L
Options: wastes for models without pop-up wastes (see page 99),
copper tails (see page 105)
2520EP 2521L
50 Mixers & taps for washbasins
