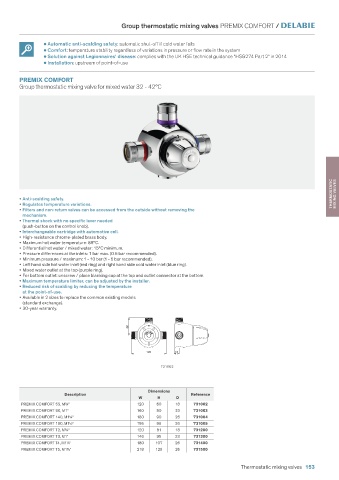

PREMIX COMFORT group thermostatic mixing valves /

• Automatic anti-scalding safety: automatic shut-off if cold water fails
• Comfort: temperature stability regardless of variations in pressure or flow rate in the system
• Solution against Legionnaires' disease: complies with the UK HSE technical guidance "HSG274 Part 2" in 2014
• Installation: upstream of point-of-use

PREMIX COMFORT
Group thermostatic mixing valve for mixed water 32 - 42°C

THERMOSTATIC MIXING VALVES

• Anti-scalding safety.
• Regulates temperature variations.
• Filters and non-return valves can be accessed from the outside without removing
the mechanism.
• Thermal shock with no specific lever needed
(push-button on the control knob).
• Interchangeable cartridge with thermostatic cell.
• High-resistance chrome-plated brass body.
• Maximum hot water temperature: 85°C.
• Differential hot water / mixed water: 15°C minimum.
• Pressure differences at the inlets: 1 bar max. (0.5 bar recommended).
• Minimum pressure / maximum: 1 - 10 bar (1 - 5 bar recommended).
• Left hand side hot water inlet (red ring) and right hand side cold water inlet (blue ring).
• Mixed water outlet at the top (purple ring).
• For bottom outlet: unscrew / place blanking cap at the top and outlet connector at the bottom.
• Maximum temperature limiter, can be adjusted by the installer.
• Reduced risk of scalding by reducing the temperature
at the point-of-use.
• Available in 2 sizes to replace the common existing models
(standard exchange).
• 30-year warranty.

60

120 18

731002

Dimensions
Description Reference
W H D
PREMIX COMFORT 55, M¾" 120 60 18 731002
PREMIX COMFORT 90, M1" 160 80 23 731003
PREMIX COMFORT 140, M1¼" 180 90 26 731004
PREMIX COMFORT 190, M1½" 195 98 26 731005
PREMIX COMFORT T2, M¾" 120 81 18 731200
PREMIX COMFORT T3, M1" 146 95 23 731300
PREMIX COMFORT T4, M1¼" 180 107 26 731400
PREMIX COMFORT T5, M1½" 218 129 26 731500

Thermostatic mixing valves 153
