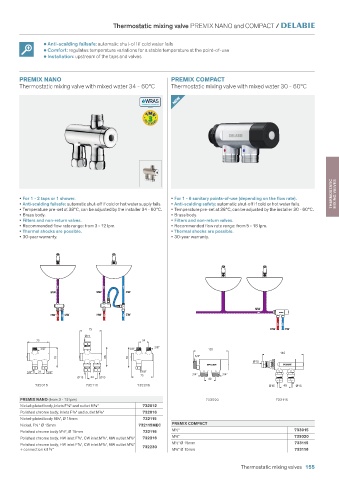

PREMIX NANO and COMPACT group thermostatic mixing valves /

• Anti-scalding failsafe: automatic shut-off if cold water fails
• Comfort: regulates temperature variations for a stable temperature at the point-of-use
• Installation: upstream of the taps and valves

PREMIX NANO PREMIX COMPACT
Thermostatic mixing valve with mixed water 34 - 60°C Thermostatic mixing valve with mixed water 30 - 60°C

THERMOSTATIC MIXING VALVES

• For 1 - 2 taps or 1 shower. • For 2 - 11 points-of-use (depending on the flow rate).
• Anti-scalding failsafe: automatic shut-off if cold or hot water supply fails. • Anti-scalding safety: automatic shut-off if cold or hot water supply fails.
• Temperature pre-set at 38°C, can be adjusted by the installer 34 - 60°C. • Temperature pre-set at 38°C, can be adjusted by the installer 30 - 60°C.
• For ref. 732115 and 732116 : tested without water to comply with NHS • For ref. 732115 and 732116 : tested without water to comply with NHS
(UK) requirements. No pre-set temperature. (UK) requirements. No pre-set temperature.
• Brass body. • Brass body.
• Filters and non-return valves. • Filters and non-return valves.
• Recommended flow rate range: from 3 - 12 lpm. • Recommended flow rate range: from 5 to 33 lpm.
• Thermal shocks are possible. • Centres: 40mm.
• 30-year warranty. • Thermal shocks are possible.
• 30-year warranty.

MW MW CW

HW CW HW CW
MW
75
Ø15
75 34
HW CW
3/8"
3/8" 3/8"
68
70 70
120
140
3/8" 34 3/8" 3/8" 3/4"
Ø 15 34 Ø15 75 Ø15
732016 732115 732216
PREMIX NANO 3/4" 3/4"
40
Nickel-plated body, inlets F⅜" and outlet M⅜" 732012
Ø15 40 Ø15
Polished chrome body, inlets F⅜" and outlet M⅜" 732016
Nickel-plated body M½", Ø 15mm - tested without water 733020 733115
(NHS compliant) 732115
Nickel-plated body M½", Ø 15mm 732125
PREMIX COMPACT
Nickel, F½ " Ø 15mm 732115MEC
M½" 733015
Polished chrome body M½", Ø 15mm - tested without water 732116
(NHS compliant) M¾" 733020
Polished chrome body M½", Ø 15mm 732126 M½" Ø 15mm - tested without water (NHS compliant) 733115
M¾" Ø 15mm - tested without water (NHS compliant) 733116
Polished chrome body, HW inlet F⅜", CW inlet M⅜", MW outlet M⅜" 732216
Polished chrome body, HW inlet F⅜", CW inlet M⅜", MW outlet M⅜" 732230 M½" Ø 15mm 733125
+ connection kit ⅜" M¾" Ø 15mm 733126
Thermostatic mixing valves 155
