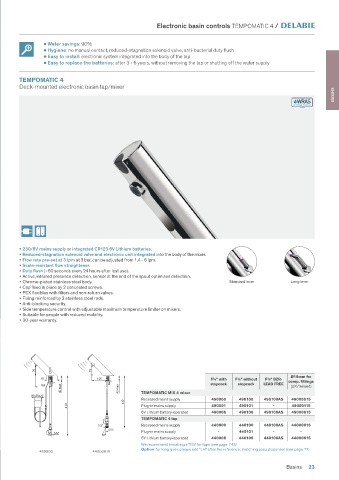

TEMPOMATIC 4 electronic basin controls /

• Exceptional water savings: 90%
• Hygiene: no manual contact, reduced-stagnation solenoid valve, anti-bacterial duty flush
• Easy to install: electronic system integrated into the body of the tap
• Easy to replace the batteries: after 3 - 6 years, without removing the tap or shutting off the water supply

TEMPOMATIC 4
Deck-mounted electronic basin tap/mixer Pair it with

NEW BASINS

Soap dispenser
(see page 77)

• 230/6V mains supply or integrated CR123 6V Lithium batteries.
• Reduced-stagnation solenoid valve and electronic unit
integrated into the body of the mixer.
• Flow rate pre-set at 3 lpm at 3 bar, can be adjusted
from 1.4 - 6 lpm.
• Scale-resistant flow straightener.
• Duty flush (~60 seconds every 24 hours after last use).
• Active, infrared presence detection, sensor at the end
of the spout optimises detection.
• Chrome-plated stainless steel body.
• Cap fixed in place by 2 concealed screws.
• PEX flexibles with filters and non-return valves.
• Fixing reinforced by 2 stainless steel rods. Long lever
• Anti-blocking security.
• Side temperature control with adjustable maximum temperature
limiter on mixers.
• Suitable for people with reduced mobility.
• 30-year warranty.

Standard lever
70 75 Ø15mm for
F⅜" with F⅜" without F⅜" DZR-
70 105 stopcock stopcock LEAD FREE comp. fittings
(UK/Ireland)
45 max 45 max TEMPOMATIC MIX 4 mixer
105
50x50x25 Recessed mains supply 490000 490100 490100AS 49000015
430 Plug-in mains supply 490001 490101 - 49000115
410 6V Lithium battery-operated 490006 490106 490106AS 49000615
TEMPOMATIC 4 tap
Recessed mains supply 440000 440100 440100AS 44000015
1/2" Plug-in mains supply - 440101 - -
Ø15
3/8" 6V Lithium battery-operated 440006 440106 440106AS 44000615
30°
We recommend installing a TMV for taps (see page 143)
Option: for long lever, please add "LH" after the reference.
For compression fittings with copper tails, please add "CO" after the reference.
490000 44000615
Basins 23
