Page 33 - water-controls-for-public-commercial-places

BINOPTIC 2 electronic basin controls /

• Exceptional water savings: 90%
• Hygiene: no manual contact, anti-bacterial duty flush, spout with smooth interior and low water volume,
reduced-stagnation solenoid valves
• Simplified installation and maintenance: LED diagnostic tool, set manually or using the Bluetooth app
®

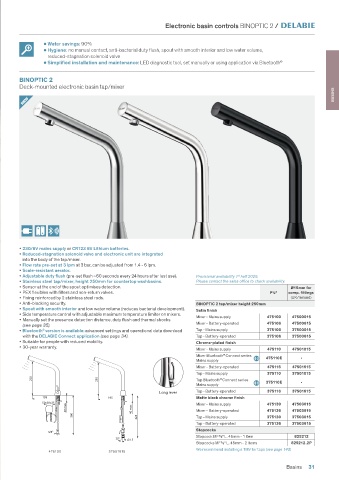

BINOPTIC 2
Deck-mounted electronic basin tap/mixer
Pair it with BASINS
NEW NEW

Soap dispenser
(see page 77)

• 230/6V mains supply or CR123 6V Lithium batteries.
• Reduced-stagnation solenoid valve and electronic unit are integrated
into the body of the tap/mixer.
• Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 - 6 lpm.
• Scale-resistant aerator.
• Adjustable duty flush (pre-set flush ~60 seconds every 24 hours after last use). Standard lever
• Stainless steel tap/mixer, height 100mm for recessed washbasins. Product currently under development.
• Sensor at the end of the spout optimises presence detection. Ø15mm for
• PEX flexibles with filters and non-return valves. F⅜" comp. fittings
• Fixing reinforced by 2 stainless steel rods. (UK/Ireland)
• Anti-blocking security. BINOPTIC 2 electronic tap/mixer height 100mm
• Spout with smooth interior and low water volume Satin finish
(reduces bacterial development). Mixer - Mains supply 473100 47300015
• Side temperature control with adjustable maximum temperature limiter on mixers. Mixer - Battery-operated 473106 47300615
• Manually set presence detection range, duty flush and launch thermal
shocks (see page 29). Tap - Mains supply 373100 37300015
®
• Bluetooth version is available: advanced settings and operational data Tap - Battery-operated 373106 37300615
download with the DELABIE Connect application (see page 28). Chrome-plated finish
• Suitable for people with reduced mobility. 30-year warranty. Mixer - Mains supply 473110 47301015
®
Mixer Bluetooth Connect series 473110E -
Mains supply
Mixer - Battery-operated 473116 47301615
Tap - Mains supply 373110 37301015
100 105 Tap Bluetooth Connect series
®
Mains supply 373110E -
155 155
Tap - Battery-operated 373116 37301615
50x50x25 50x50x25
40 max 40 max Matte black chrome finish
Mixer - Mains supply 473130 47303015
360 Mixer - Battery-operated 473136 47303615
425
Tap - Mains supply 373130 37303015
Tap - Battery-operated 373136 37303615
Stopcocks
3/8"
Stopcock MF⅜" L. 45mm - 1 item 825212
30° Stopcocks MF⅜" L. 45mm - 2 items 825212.2P
Ø 15
We recommend installing a TMV for taps (see page 143)
47300015 373110E
Basins 31
