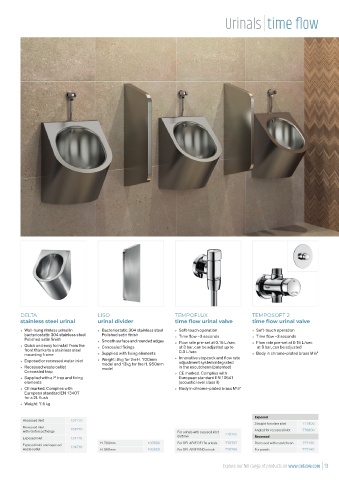

Urinals time flow

DELTA LISO TEMPOFLUX TEMPOSOFT 2
stainless steel urinal urinal divider time flow urinal valve time flow urinal valve
X Wall-hung rimless urinal in X Bacteriostatic 304 stainless steel X Soft-touch operation X Soft-touch operation
bacteriostatic 304 stainless steel Polished satin finish
X Time flow ~3 seconds X Time flow ~3 seconds
Polished satin finish
X Smooth surface and rounded edges X Flow rate pre-set at 0.15 L/sec. X Flow rate pre-set at 0.15 L/sec
X Quick and easy to install from the X Concealed fixings at 3 bar, can be adjusted up to at 3 bar, can be adjusted
front thanks to a stainless steel 0.3 L/sec
mounting frame X Supplied with fixing elements Innovative stopcock and flow rate X Body in chrome-plated brass M½"
X Exposed or recessed water inlet X Weight: 8kg for the H. 700mm X adjustment system integrated
model and 13kg for the H. 950mm
X Recessed waste outlet model in the escutcheon (patented)
Concealed trap
X CE marked. Complies with
X Supplied with a P trap and fixing European standard EN 12541
elements (acoustic level class II)
X CE marked. Complies with X Body in chrome-plated brass M½"
European standard EN 13407
for a 2L flush
X Weight: 7.5 kg
Exposed
Recessed inlet 134770
Straight for inline inlet 777800
Recessed inlet 164770
with reinforced fixings For urinals with exposed inlet 778755 Angled for recessed inlet 778800
Ø35mm Recessed
Exposed inlet 134170
H. 700mm 100590 For DELABIE DELTA urinals 778757 Recessed with escutcheon 777130
Exposed inlet and exposed 134710
waste outlet H. 950mm 100600 For DELABIE FINO urinals 778759 For panels 777140
Explore our full range of products on www.delabie.com 13
