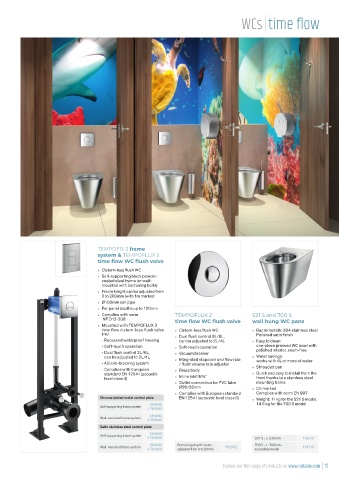

Page 17 - the-essentials

WCs time flow

TEMPOFIX 3 frame
system & TEMPOFLUX 3
time flow WC flush valve

X Cistern-less flush WC
X Self-supporting black powder-
coated steel frame (or wall-
mounted with anchoring bolts)
X Frame height can be adjusted from
0 to 200mm (with 1m marker)
X Ø100mm soil pipe
X For panel depths up to 120mm
X Complies with norm TEMPOFLUX 2 S21 S and 700 S
NF D12 208
time flow WC flush valve wall hung WC pans
X Mounted with TEMPOFLUX 3
time flow cistern-less flush valve X Cistern-less flush WC X Bacteriostatic 304 stainless steel
F¾": Polished satin finish
X Dual flush control 3L/6L,
- Recessed waterproof housing can be adjusted to 2L/4L X Easy to clean:
- Soft-touch operation X Soft-touch operation one-piece pressed WC bowl with
- Dual flush control 3L/6L, X Vacuum breaker polished interior, seam-free
can be adjusted to 2L/4L X Water savings:
X Integrated stopcock and flow rate works with 4L or more of water
- AB anti-blocking system / flush volume rate adjuster
- Complies with European X Brass body X Shrouded pan
standard EN 12541 (acoustic Inline inlet M¾" X Quick and easy to install from the
level class II) X front thanks to a stainless steel
X Outlet connection for PVC tube mounting frame
Ø26/32mm
X CE marked
X Complies with European standard Complies with norm EN 997
Chrome-plated metal control plate EN 12541 (acoustic level class II) Weight: 11 kg for the S21 S model,
X
564065 14.5 kg for the 700 S model
Self-supporting frame system
+ 763040
564060
Wall-mounted frame system
+ 763040
Satin stainless steel control plate
564065
Self-supporting frame system
+ 763000 S21 S - L. 535mm 110310
564060 Recessing depth can be 700 S - L. 700mm -
Wall-mounted frame system 762902 110710
+ 763000 adjusted from 0 to 20mm accessible model
