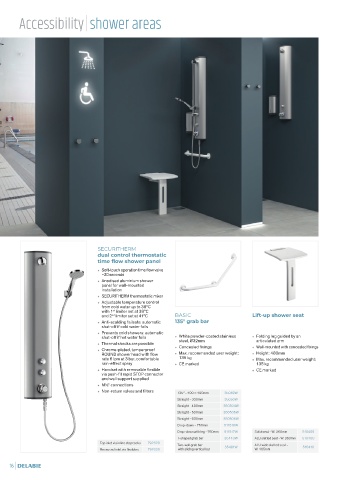

Accessibility shower areas

SECURITHERM
dual control thermostatic
time flow shower panel

X Soft-touch operation time flow valve
~30 seconds
X Anodised aluminium shower
panel for wall-mounted
installation
X SECURITHERM thermostatic mixer
X Adjustable temperature control
from cold water up to 38°C
st
with 1 limiter set at 38°C
nd
and 2 limiter set at 41°C BASIC Lift-up shower seat
X Anti-scalding failsafe: automatic 135° grab bar
shut-off if cold water fails
X Prevents cold showers: automatic
shut-off if hot water fails X White powder-coated stainless X Folding leg guided by an
steel, Ø32mm articulated arm
X Thermal shocks are possible
X Concealed fixings X Wall-mounted with concealed fixings
X Chrome-plated, tamperproof
ROUND shower head with flow X Max. recommended user weight: X Height: 480mm
rate 6 lpm at 3 bar, comfortable 135 kg X Max. recommended user weight:
rain-effect spray X CE marked 135 kg
X Handset with removable flexible X CE marked
via push-fit rapid STOP connector
and wall support supplied
X M½" connections
X Non-return valves and filters
135° - 400 400mm 35082W
Straight - 300mm 35050W
Straight - 400mm 350504W
Straight - 500mm 350505W
Straight - 600mm 350506W
Drop-down - 760mm 511516W
Drop-down with leg - 760mm 511517W Solid seat - W. 360mm 510405
T-shaped grab bar 35440W ALU slatted seat - W. 360mm 510400
Top inlet via inline stopcocks 792320
Two-wall grab bar 35481W ALU wide slatted seat - 510410
Recessed inlet via flexibles 792330 with sliding vertical bar W. 465mm

16
