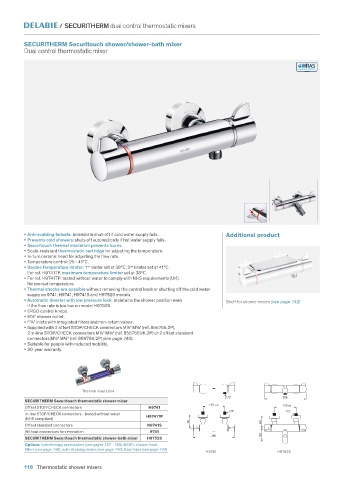

Page 118 - water-controls-for-healthcare

/ SECURITHERM dual control thermostatic mixers

SECURITHERM Securitouch shower/shower-bath mixer
Dual control thermostatic mixer

• Anti-scalding failsafe: immediate shut-off if cold water supply fails. Additional product
• Prevents cold showers: shuts off automatically if hot water supply fails.
• Securitouch thermal insulation prevents burns.
• Scale-resistant thermostatic cartridge for adjusting the temperature.
• ¼-turn ceramic head for adjusting the flow rate.
• Temperature control: 25 - 41°C.
nd
• Double temperature limiter: 1 limiter set at 38°C, 2 limiter set at 41°C.
st
For ref. H9741TP, maximum temperature limiter set at 38°C.
• For ref. H9741TP: tested without water to comply with NHS requirements (UK).
No pre-set temperature.
• Thermal shocks are possible without removing the control knob or shutting off the cold water
supply on 9741, H9741, H9741S and H9752S models.
• Automatic diverter with low pressure lock: maintains the shower position even Shelf for shower mixers (see page 142)
if the flow rate is too low on model H9752S.
• ERGO control knobs.
• M½" shower outlet.
• F¾" inlets with integrated filters and non-return valves.
• Supplied with 2 offset STOP/CHECK connectors M½" M¾" (ref. 855755.2P),
2 in-line STOP/CHECK connectors M½" M¾" (ref. 855755UK.2P) or 2 offset standard
connectors M½" M¾" (ref. 856794.2P) (see page 140).
• Suitable for people with reduced mobility.
• 30-year warranty.

Thermal insulation
1/2" 286
SECURITHERM Securitouch thermostatic shower mixer
±
Offset STOP/CHECK connectors H9741 150 ±20 150 20
1/2" 1/2"
In-line STOP/CHECK connectors - tested without water H9741TP
(NHS compliant)
92 84
Offset standard connectors H9741S
Without connectors for renovation 9741
SECURITHERM Securitouch thermostatic shower-bath mixer H9752S 286 93
Options: hydrotherapy accessories (see pages 137 - 139), BIOFIL shower head
filters (see page 138), auto-draining device (see page 140), floor traps (see page 143)
H9741 H9752S
116 Thermostatic shower mixers
