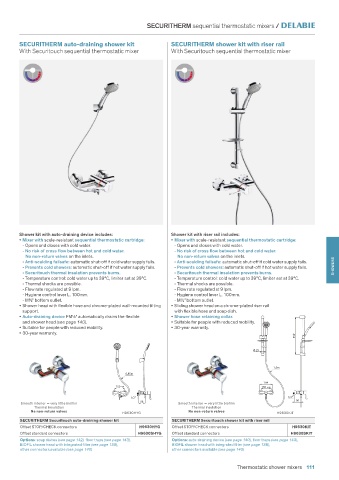

SECURITHERM sequential thermostatic mixers /

SECURITHERM auto-draining shower kit SECURITHERM shower kit with riser rail
With Securitouch sequential thermostatic mixer With Securitouch sequential thermostatic mixer

Shower kit with auto-draining device includes: Shower kit with riser rail includes:
• Mixer with scale-resistant sequential thermostatic cartridge: • Mixer with scale-resistant sequential thermostatic cartridge:
- Opens and closes with cold water. - Opens and closes with cold water.
- No risk of cross flow between hot and cold water. - No risk of cross flow between hot and cold water.
No non-return valves on the inlets. No non-return valves on the inlets.
- Anti-scalding failsafe: automatic shut-off if cold water supply fails. - Anti-scalding failsafe: automatic shut-off if cold water supply fails.
- Prevents cold showers: automatic shut-off if hot water supply fails. - Prevents cold showers: automatic shut-off if hot water supply fails. SHOWERS
- Securitouch thermal insulation prevents burns. - Securitouch thermal insulation prevents burns.
- Temperature control: cold water up to 39°C, limiter set at 39°C. - Temperature control: cold water up to 39°C, limiter set at 39°C.
- Thermal shocks are possible. - Thermal shocks are possible.
- Flow rate regulated at 9 lpm. - Flow rate regulated at 9 lpm.
- Hygiene control lever L. 100mm. - Hygiene control lever L. 100mm.
- M½" bottom outlet. - M½" bottom outlet.
• Shower head with flexible hose and chrome-plated wall-mounted tilting • Sliding shower head on a chrome-plated riser rail
support. with flexible hose and soap dish.
• Auto-draining device FM½" automatically drains the flexible • Shower hose retaining collar.
and shower head (see page 140). • Suitable for people with reduced mobility.
• Suitable for people with reduced mobility. • 30-year warranty.
• 30-year warranty.
550

Ø 25

1,5m
0,85m
184
150 ±20 150 ±20

1/2" 1/2"
Smooth interior = very little biofilm 96 Smooth interior = very little biofilm 96
Thermal insulation Thermal insulation
No non-return valves H9630HYG No non-return valves H9630KIT
SECURITHERM Securitouch auto-draining shower kit SECURITHERM Securitouch shower kit with riser rail
Offset STOP/CHECK connectors H9630HYG Offset STOP/CHECK connectors H9630KIT
Offset standard connectors H9630SHYG Offset standard connectors H9630SKIT
Options: soap dishes (see page 142), floor traps (see page 143), Options: auto-draining device (see page 140), floor traps (see page 143),
BIOFIL shower head with integrated filter (see page 138), BIOFIL shower head with integrated filter (see page 138),
other connectors available (see page 140) other connectors available (see page 140)

Thermostatic shower mixers 111
