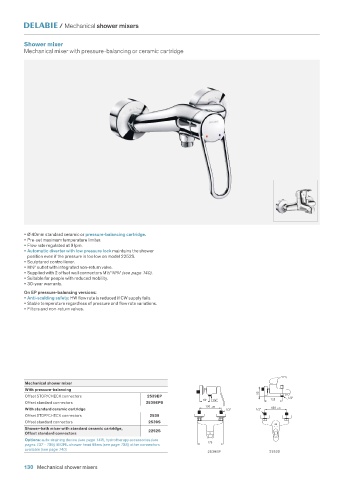

Page 132 - water-controls-for-healthcare

/ Mechanical shower mixers

Shower mixer
Mechanical mixer with pressure-balancing or ceramic cartridge

• Ø 40mm standard ceramic or pressure-balancing cartridge.
• Pre-set maximum temperature limiter.
• Flow rate regulated at 9 lpm.
• Automatic diverter with low pressure lock maintains the shower
position even if the pressure is too low on model 2252S.
• Sculptured control lever.
• M½" outlet with integrated non-return valve.
• Supplied with 2 offset wall connectors M½" M¾" (see page 140).
• Suitable for people with reduced mobility.
• 30-year warranty.
On EP pressure-balancing versions:
• Anti-scalding safety: HW flow rate is reduced if CW supply fails.
• Stable temperature regardless of pressure and flow rate variations.
• Filters and non-return valves.

1/2"
Mechanical shower mixer
With pressure-balancing
53
Offset STOP/CHECK connectors 2539EP 1/2"
69 1/2" 122
Offset standard connectors 2539EPS
With standard ceramic cartridge 150 ±20 1/2" 1/2" 150 ±20
Offset STOP/CHECK connectors 2539
Offset standard connectors 2539S
Shower-bath mixer with standard ceramic cartridge, 1/2"
Offset standard connectors 2252S
Options: auto-draining device (see page 140), hydrotherapy accessories (see 175
pages 137 - 139), BIOFIL shower head filters (see page 138), other connectors
available (see page 140)
2539EP 2252S
130 Mechanical shower mixers
