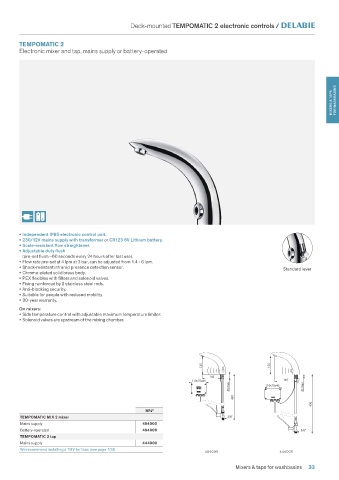

Deck-mounted TEMPOMATIC 2 electronic controls /


            TEMPOMATIC 2
            Electronic mixer and tap, mains supply or battery-operated







                                                                                                                          MIXERS & TAPS    FOR WASHBASINS






























            • Independent IP65 electronic control unit.
            • 230/12V mains supply with transformer or CR123 6V Lithium battery.
            • Scale-resistant flow straightener.
            • Adjustable duty flush
             (pre-set flush ~60 seconds every 24 hours after last use).
            • Flow rate pre-set at 4 lpm at 3 bar, can be adjusted from 1.4 - 6 lpm.
            • Shock-resistant infrared presence detection sensor.                                        Standard lever
            • Chrome-plated solid brass body.
            • PEX flexibles with filters and solenoid valves.
            • Fixing reinforced by 2 stainless steel rods.
            • Anti-blocking security.
            • Suitable for people with reduced mobility.
            • 30-year warranty.
            On mixers:
            • Side temperature control with adjustable maximum temperature limiter.
            • Solenoid valves are upstream of the mixing chamber.








                                                                            125                     125

                                                                               145
                                                                         110x75x40                       145
                                                                                      45 max      110x75x40     45 max
                                                                                       430
                                                                                                                   430
                                                        M⅜"
            TEMPOMATIC MIX 2 mixer                                                   3/8"
            Mains supply                               494000
            Battery-operated                           494006                                                  3/8"
            TEMPOMATIC 2 tap
            Mains supply                               444000
            We recommend installing a TMV for taps (see page 103)
                                                                             494000                    444000
                                                                                        Mixers & taps for washbasins  33
