Page 37 - water-controls-for-healthcare
P. 37

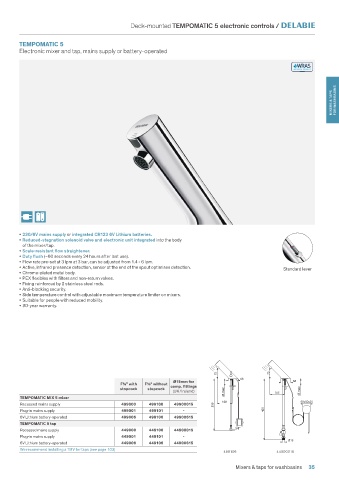

Deck-mounted TEMPOMATIC 5 electronic controls /


            TEMPOMATIC 5
            Electronic mixer and tap, mains supply or battery-operated







                                                                                                                          MIXERS & TAPS    FOR WASHBASINS






























            • 230/6V mains supply or integrated CR123 6V Lithium batteries.
            • Reduced-stagnation solenoid valve and electronic unit integrated into the body
             of the mixer/tap.
            • Scale-resistant flow straightener.
            • Duty flush (~60 seconds every 24 hours after last use).
            • Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 - 6 lpm.
            • Active, infrared presence detection, sensor at the end of the spout optimises detection.   Standard lever
            • Chrome-plated metal body.
            • PEX flexibles with filters and non-return valves.
            • Fixing reinforced by 2 stainless steel rods.
            • Anti-blocking security.
            • Side temperature control with adjustable maximum temperature limiter on mixers.
            • Suitable for people with reduced mobility.
            • 30-year warranty.













                                                                                 75                 75
                                                                                          68
                                                                  Ø15mm for                                 68
                                               F⅜" with   F⅜" without   comp. fittings
                                               stopcock   stopcock
                                                                  (UK/Ireland)      45 max            105     45 max
            TEMPOMATIC MIX 5 mixer
                                                                                   100                         50x50x25
            Recessed mains supply               499000    499100  49900015      355
            Plug-in mains supply                499001    499101     -                            420
            6V Lithium battery-operated         499006    499106  49900615
            TEMPOMATIC 5 tap
            Recessed mains supply               449000    449100  44900015              3/8"
            Plug-in mains supply                449001    449101     -
                                                                                                          Ø15
            6V Lithium battery-operated         449006    449106  44900615
            We recommend installing a TMV for taps (see page 103)
                                                                                    499106            44900015
                                                                                        Mixers & taps for washbasins  35
   32   33   34   35   36   37   38   39   40   41   42
