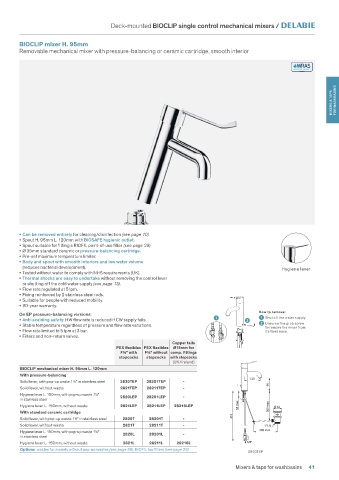

Page 43 - water-controls-for-healthcare

Deck-mounted BIOCLIP single control mechanical mixers /

BIOCLIP mixer H. 95mm
Removable mechanical mixer with pressure-balancing or ceramic cartridge, smooth interior

MIXERS & TAPS FOR WASHBASINS

• Can be removed entirely for cleaning/disinfection (see page 10).
• Spout H. 95mm L. 120mm with BIOSAFE hygienic outlet.
• Spout suitable for fitting a BIOFIL point-of-use filter (see page 23).
• Ø 35mm standard ceramic or pressure-balancing cartridge.
• Pre-set maximum temperature limiter.
• Body and spout with smooth interiors and low water volume
(reduces bacterial development). Hygiene lever
• Tested without water to comply with NHS requirements (UK).
• Thermal shocks are easy to undertake without removing the control lever
or shutting off the cold water supply (see page 13).
• Flow rate regulated at 5 lpm.
• Fixing reinforced by 2 stainless steel rods.
• Suitable for people with reduced mobility.
• 30-year warranty.
How to remove:
On EP pressure-balancing versions:
• Anti-scalding safety: HW flow rate is reduced if CW supply fails.  2  Shut off the water supply.
• Stable temperature regardless of pressure and flow rate variations. 2 Unscrew the grub screw
to remove the mixer from
• Flow rate limited to 5 lpm at 3 bar. its fixed base.
• Filters and non-return valves.
Copper tails
PEX flexibles PEX flexibles Ø15mm for
F⅜" with F⅜" without comp. fittings
stopcocks stopcocks with stopcocks
(UK/Ireland)
BIOCLIP mechanical mixer H. 95mm L. 120mm
With pressure-balancing
120
Solid lever, with pop-up waste 1¼" in stainless steel 2820TEP 28201TEP -
95
Solid lever, without waste 2821TEP 28211TEP -
Hygiene lever L. 150mm, with pop-up waste 1¼" 2820LEP 28201LEP -
in stainless steel
Hygiene lever L. 150mm, without waste 2821LEP 28211LEP 28216LEP 55 max 300 max Ø 63
With standard ceramic cartridge
Solid lever, with pop-up waste 1¼" in stainless steel 2820T 28201T - 410
Solid lever, without waste 2821T 28211T - 1"1/4
Hygiene lever L. 150mm, with pop-up waste 1¼" 2820L 28201L - 200 max
in stainless steel
Hygiene lever L. 150mm, without waste 2821L 28211L 28216L 3/8"
Options: wastes for models without pop-up wastes (see page 99), BIOFIL tap filters (see page 23)
2820TEP
