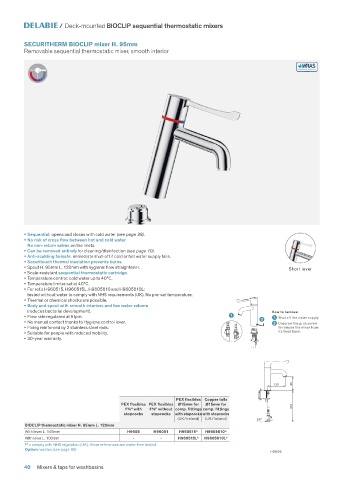

/ Deck-mounted BIOCLIP sequential thermostatic mixers

SECURITHERM BIOCLIP mixer H. 95mm
Removable sequential thermostatic mixer, smooth interior

• Sequential: opens and closes with cold water (see page 38).
• No risk of cross flow between hot and cold water.
No non-return valves on the inlets.
• Can be removed entirely for cleaning/disinfection (see page 10).
• Anti-scalding failsafe: immediate shut-off if cold or hot water supply fails.
• Securitouch thermal insulation prevents burns.
• Spout H. 95mm L. 120mm with hygienic flow straightener. Short lever
• Scale-resistant sequential thermostatic cartridge.
• Temperature control: cold water up to 40°C.
• Temperature limiter set at 40°C.
• For ref.s H960515, H960515L, H9605610 and H9605610L:
tested without water to comply with NHS requirements (UK). No pre-set temperature.
• Thermal or chemical shocks are possible.
• Body and spout with smooth interiors and low water volume
(reduces bacterial development). How to remove:
• Flow rate regulated at 5 lpm.  2  Shut off the water supply.
• No manual contact thanks to Hygiene control lever. 2 Unscrew the grub screw
• Fixing reinforced by 2 stainless steel rods. to remove the mixer from
• Suitable for people with reduced mobility. its fixed base.
• 30-year warranty.

120 95
40 max
PEX flexibles Copper tails
PEX flexibles PEX flexibles Ø15mm for Ø15mm for
F⅜" with F⅜" without comp. fittings comp. fittings 414
stopcocks stopcocks with stopcocks with stopcocks
(UK/Ireland) (UK/Ireland) 3/8"
BIOCLIP thermostatic mixer H. 95mm L. 120mm
With lever L. 146mm H9605 H96051 H960515* H9605610*
With lever L. 100mm - - H960515L* H9605610L*
*To comply with NHS regulation (UK), those references are water-free tested.
Option: wastes (see page 99)
H9605
40 Mixers & taps for washbasins
