Frame systems for direct flush /

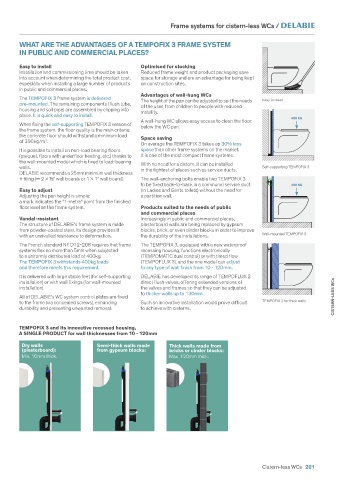

               WHAT ARE THE ADVANTAGES OF A TEMPOFIX 3 FRAME SYSTEM
               IN PUBLIC AND COMMERCIAL PLACES?

               Easy to install                           Advantages of wall-hung WCs
               Installation and commissioning time should be taken   The height of the pan can be adjusted to suit the needs
               into account when determining the total product cost,   of the user, from children to people with reduced
               especially when installing a large number of products   mobility.
               in public and commercial places.
                                                         A wall-hung WC allows easy access to clean the floor
               The TEMPOFIX 3 frame system is delivered    below the WC pan.                        Easy to clean
               pre-mounted. The remaining components (flush tube,
               housing and soil pipe) are assembled by clipping into   Space saving
               place. It is quick and easy to install.   On average the TEMPOFIX 3 takes up 30% less          400 KG
                                                         space than other frame systems on the market.
               When fixing the self-supporting TEMPOFIX 3 version of   It is one of the most compact frame systems.
               the frame system, the floor quality is the main criteria:
               the concrete floor should withstand a minimum load    With no need for a cistern, it can be installed
               of 350kg/m .                              in the tightest of places such as service ducts.
                        3
               It is possible to install on non-load bearing floors   The wall-anchoring bolts enable two TEMPOFIX 3
               (parquet, floors with underfloor heating, etc.) thanks to   frame systems to be fixed back-to-back in a
               the wall-mounted model which is fixed to load-bearing   communal service duct (in Ladies and Gents toilets
               walls.                                    for example) without the need for a partition wall.  Self-supporting TEMPOFIX 3
               DELABIE recommends a 25mm minimum wall thickness
               + tiling (= 2   ½" wall boards or 1   1" wall board).  Products suited to the needs of public
                                                         and commercial places                                400 KG
                                                         Increasingly in public and commercial places,
               Easy to adjust
               Adjusting the pan height is simple:       plasterboard walls are being replaced by gypsum
               a mark indicates the "1-metre" point from the finished   blocks, brick, or even cinder blocks in order to improve
               floor level on the frame system.           the durability of the installations.
                                                         The TEMPOFIX 3, equipped with a new recessed
               Vandal-resistant                          waterproof housing, functions electronically
               The structure of DELABIE's frame system is made   (TEMPOMATIC dual control and Connect) or with
               from powder-coated steel. Its design provides it    timed flow (TEMPOFLUX 3), and one model can
               with an unrivalled resistance to deformation.  adjust to any type of wall finish from 10 - 120mm.  Wall-mounted TEMPOFIX 3
               The French standard NF D12 208 requires that frame   DELABIE has developed its range of TEMPOFLUX 2
               systems flex no more than 5mm when subjected    direct flush valves, offering extended versions of
               to a uniformly distributed load of 400kg.  the valves and frames so that they can be adjusted
               The TEMPOFIX 3 withstands 400kg loads     to thicker walls up to 130mm.
               and therefore meets this requirement.
                                                         Such an innovative installation would prove difficult
               It is delivered with large stable feet (for self-supporting   to achieve with cisterns.
               installation) or with wall fixings (for wall-mounted
               installation). All of DELABIE's flush system control
               plates and wall plates are mounted to the supporting
               surface manually (via concealed fixings).
               This gives greater durability and prevents unwanted                                  TEMPOFIX 3 for thick walls  CISTERN-LESS
               removal.                                                                                                       WCs
               Optimised for stocking
               Reduced frame weight and product packaging save
               space for storage and are an advantage for being kept
               on construction sites.

               TEMPOFIX 3 and its innovative waterproof housing,
               ONE SINGLE PRODUCT for wall depths of 10 - 120mm
                Dry walls                 Semi-thick walls made    Thick walls made from
                (plasterboard):           from gypsum blocks:      bricks or cinder blocks:
                Min. 10mm thick.                                   Max. 120mm thick.

















                                                                                                    Cistern-less WCs  201
