P. 207

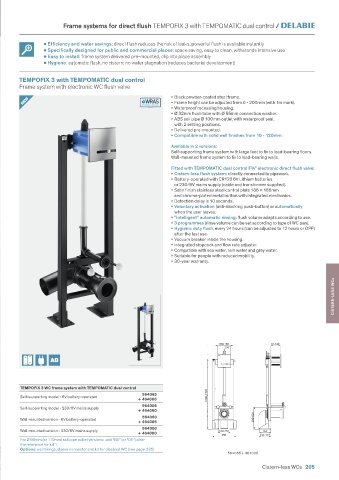

TEMPOFIX 3 with TEMPOMATIC dual control frame systems for direct flush /


                     •  Efficiency and water savings: direct flush reduces the risk of leaks, powerful flush is available instantly
                     •  Specifically designed for public and commercial places: space saving, easy to clean, withstands intensive use
                     •  Easy to install: frame system delivered pre-mounted, clip into place assembly
                     •  Hygiene: automatic flush, no cistern: no water stagnation (reduces bacterial development)


            TEMPOFIX 3 with TEMPOMATIC dual control
            Frame system with electronic WC flush valve
                                                                 • Black powder-coated steel frame.
                                                                 • Frame height can be adjusted from 0 - 200mm (with 1m mark).
                                                                 • Recessed waterproof housing.
                                                                 • Ø 32mm flush tube with Ø 55mm connection washer.
                                                                 • ABS soil pipe with Ø 100mm outlet with waterproof seal,
                                                                  with 2 setting positions.
                                                                 • Delivered pre-mounted.
                                                                 • Compatible with solid wall finishes from 10 - 120mm.
                                                                 Available in 2 versions:
                                                                 Self-supporting frame system with large feet to fix to load-bearing floors.
                                                                 Wall-mounted frame system to fix to load-bearing walls.
                                                                 Fitted with TEMPOMATIC dual control F¾" electronic direct flush valve:
                                                                 • Flush system without cistern: directly connected to pipework.
                                                                 • Battery-operated with CR123 6V Lithium batteries
                                                                  or 230/6V mains supply (cable and transformer supplied).
                                                                 • Control plate in satin finish stainless steel or matte black finish.
                                                                  186   186mm with chrome-plated metal button and integrated
                                                                  electronics.
                                                                 • Control plate fixed manually via concealed screws.
                                                                 • Presence detection delay: 10 seconds.
                                                                 • Two activation modes:
                                                                  - Touch-free: the flush operates automatically after each user leaves,
                                                                    ensuring the bowl is rinsed between each user.
                                                   NEW            - By pressing on the anti-blocking push-button.
                                                                   The flush will activate even if the power supply fails.
                                                                 • "Intelligent" automatic rinsing: flush volume adapts according to use
                                                                  - 3L "short" usage, 6L "long" usage - (can be adjusted to 2L/4L or 5L/9L).
                                                                 • Hygienic duty flush, every 24 hours (can be adjusted to 12 hours or OFF)
                                                                  after the last use.
                                                                 • 3 programmes (flush volume can be set according to type of WC pan).
                                                                 • Vacuum breaker inside the housing.
                                                                 • Integrated stopcock and flow rate adjuster.
                                                                 • Supply pipe diameter: Ø 20mm minimum internal pipe diameter
                                                                  is required at all points (connectors included).
                                                                 • Base flow rate: 1 L/sec at 1 bar dynamic pressure.
                                                                 • Compatible with sea water, rainwater and grey water.   CISTERN LESS
                                                                 • Suitable for people with reduced mobility.
                                                                 • 30-year warranty.

            *Product currently under development.
            TEMPOFIX 3 WC frame system with TEMPOMATIC dual control
            Satin finish stainless steel control plate
                                                        564065
            Self-supporting model - 6V battery-operated                          186x186            10-120
                                                      + 464006
                                                                                    3/4"
                                                        564005
            Self-supporting model - 230/6V mains supply
                                                      + 464000
                                                        564060
            Wall-mounted version - 6V battery-operated
                                                      + 464006
                                                        564000
            Wall-mounted version - 230/6V mains supply
                                                      + 464000
            Matte black stainless steel control plate
                                                        564065
            Self-supporting model - 6V battery-operated                      1000-1320
                                                      + 464056*
                                                        564005
            Self-supporting model - 230/6V mains supply
                                                      + 464050*
                                                        564060
            Wall-mounted version - 6V battery-operated                                        300-620
                                                      + 464056*
                                                        564000
            Wall-mounted version - 230/6V mains supply
                                                      + 464050*                   180-230        165
                                                                                   350          157-177
            For Ø 90mm (or 110mm) soil pipe outlet versions: add "BE" (or "DE")
            after the reference for kit 1
            Options: wall fixings, sleeve connector and kit for disabled WC (see page 233)
                                                                                     564065 + 464006
                                                                                                 Cistern-less WCs  205
