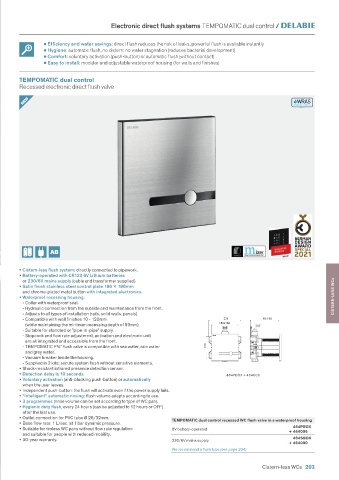

Page 205 - water-controls-for-public-commercial-places
P. 205

TEMPOMATIC dual control  electronic direct flush systems /

                       •  Efficiency and water savings: direct flush reduces the risk of leaks, powerful flush is available instantly
                       •  Hygiene: automatic flush, no cistern: no water stagnation (reduces bacterial development)
                       •  Comfort: voluntary activation (push-button) or automatic flush (without contact)
                       •  Easy to install: modular and adjustable waterproof housing (for walls and finishes)

               TEMPOMATIC dual control
               Recessed electronic direct flush valve

                NEW






























               • Flush system without cistern: directly connected to pipework.
               • Battery-operated with CR123 6V Lithium batteries
                or 230/6V mains supply (cable and transformer supplied).
               • Satin finish stainless steel or matte black control plate 186   186mm
                and chrome-plated metal button with integrated electronics.
               • Control plate fixed manually via concealed screws.
               • Recessed waterproof housing:                                          225           93-190
                                                                                      186x186
                - Collar with waterproof seal.                                                    3/4"
                - Hydraulic connection from the outside and maintenance from the front.
                - Adjusts to all types of installation (rails, solid walls, panels).
                - Compatible with wall finishes 10 - 120mm                                                                   CISTERN-LESS
                   (while maintaining the minimum recessing depth of 93mm).      150                                          WCs
                - Suitable for standard or "pipe-in-pipe" supply.
                - Stopcock and flow rate adjustment, activation and electronic unit
                   are all integrated and accessible from the front.
                - TEMPOMATIC F¾" flush valve is compatible with sea water, rain water    464PBOX + 464006
                   and grey water.
                - Vacuum breaker inside the housing.
                - Supplied in 2 kits: secure system flush without sensitive elements.
               • Shock-resistant infrared presence detection sensor.
               • Presence detection delay: 10 seconds.
               • Two activation modes:
                - Touch-free: the flush operates automatically after each user leaves,
                                                                                                 Awards:
                 ensuring the bowl is rinsed between each user.
                - By pressing on the anti-blocking push-button.     *Product currently under development.
                The flush will activate even if the power supply fails.  TEMPOMATIC recessed WC dual control flush valve in a waterproof housing
               • "Intelligent" automatic rinsing: flush volume adapts according to use   Satin finish stainless steel control plate
                - 3L "short" usage, 6L "long" usage - (can be adjusted to 2L/4L or 5L/9L).                     464PBOX
               • 3 programmes (rinse volume can be set according to type of WC pan).  6V battery-operated     + 464006
               • Hygienic duty flush, every 24 hours (can be adjusted to 12 hours or OFF)                       464SBOX
                after the last use.                                 230/6V mains supply                       + 464000
               • Outlet connection for PVC tube Ø 26/32mm.
                                                                    Matte black stainless steel control plate
               • Supply pipe diameter: Ø 20mm minimum internal pipe diameter
                is required at all points (connectors included).    6V battery-operated                        464PBOX
                                                                                                              + 464056*
               • Base flow rate: 1 L/sec. at 1 bar dynamic pressure.
                                                                                                               464SBOX
               • Suitable for rimless WC pans.                      230/6V mains supply                       + 464050*
               • Suitable for people with reduced mobility.
               • 30-year warranty.                                  We recommend a flush tube (see page 232)
                                                                                                    Cistern-less WCs  203
