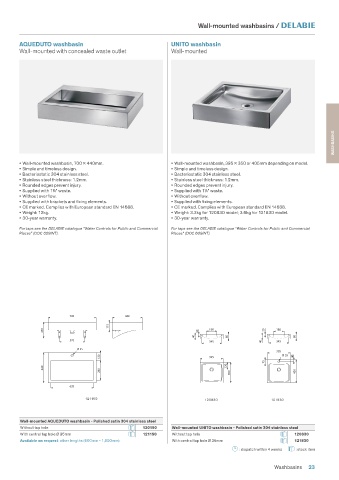

Page 25 - Stainless_Steel_Sanitary_Ware
P. 25

Wall-mounted washbasins /


            AQUEDUTO washbasin                                   UNITO washbasin
            Wall-mounted with concealed waste outlet             Wall-mounted
















                                                                                                                          WASHBASINS





            • Wall-mounted washbasin, 700 x 440mm.               • Wall-mounted washbasin, 395 x 350 or 405mm depending on model.
            • Simple and timeless design.                        • Simple and timeless design.
            • Bacteriostatic 304 stainless steel.                • Bacteriostatic 304 stainless steel.
            • Stainless steel thickness: 1.2mm.                  • Stainless steel thickness: 1.2mm.
            • Rounded edges prevent injury.                      • Rounded edges prevent injury.
            • Supplied with 11/4" waste.                         • Supplied with 11/4" waste.
            • Without overflow.                                  • Without overflow.
            • Supplied with brackets and fixing elements.        • Supplied with fixing elements.
            • CE marked. Complies with European standard EN 14688.  • CE marked. Complies with European standard EN 14688.
            • Weight: 12kg.                                      • Weight: 3.3kg for 120830 model; 3.6kg for 121830 model.
            • 30-year warranty.                                  • 30-year warranty.
            For taps see the DELABIE catalogue "Water Controls for Public and Commercial   For taps see the DELABIE catalogue "Water Controls for Public and Commercial
            Places" (DOC 609INT).                                Places" (DOC 609INT).

















                              700                440
                                           115
                    235                                                    20  180                20  180
                                                                               180
                                                                         40  20      80                      80
                              370
                                                                         40    345   80          40   345
                                                                               345
                                Ø 35
                                                                               395                    395
                                        120                                    395                      Ø 35  40
                                                                                     120120       75
                    440
                                        280                                           350350                 405
                              620

                                   121150                                    120830                 121830


            Wall-mounted AQUEDUTO washbasin - Polished satin 304 stainless steel
            Without tap hole                           120150     Wall-mounted UNITO washbasin - Polished satin 304 stainless steel
            With central tap hole Ø 35mm               121150     Without tap hole                           120830
            Available on request: other lengths (600mm - 1,800mm)  With central tap hole Ø 35mm              121830
                                                                                          : dispatch within 4 weeks   : stock item

                                                                                                     Washbasins   23
