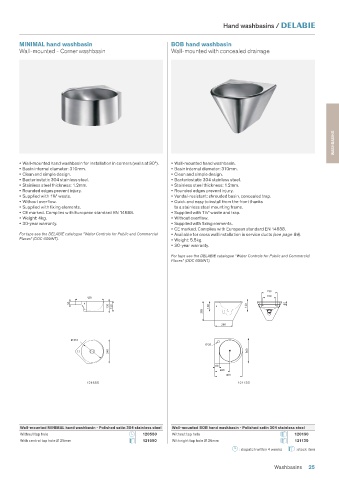

Page 27 - Stainless_Steel_Sanitary_Ware
P. 27

Hand washbasins /


            MINIMAL hand washbasin                               BOB hand washbasin
            Wall-mounted - Corner washbasin                      Wall-mounted with concealed drainage
















                                                                                                                          WASHBASINS





            • Wall-mounted hand washbasin for installation in corners (walls at 90°).  • Wall-mounted hand washbasin.
            • Basin internal diameter: 310mm.                    • Basin internal diameter: 310mm.
            • Clean and simple design.                           • Clean and simple design.
            • Bacteriostatic 304 stainless steel.                • Bacteriostatic 304 stainless steel.
            • Stainless steel thickness: 1.2mm.                  • Stainless steel thickness: 1.2mm.
            • Rounded edges prevent injury.                      • Rounded edges prevent injury.
            • Supplied with 11/4" waste.                         • Vandal-resistant: shrouded basin, concealed trap.
            • Without overflow.                                  • Quick and easy to install from the front thanks
            • Supplied with fixing elements.                      to a stainless steel mounting frame.
            • CE marked. Complies with European standard EN 14688.  • Supplied with 1½" waste and trap.
            • Weight: 4kg.                                       • Without overflow.
            • 30-year warranty.                                  • Supplied with fixing elements.
                                                                 • CE marked. Complies with European standard EN 14688.
            For taps see the DELABIE catalogue "Water Controls for Public and Commercial   • Available for cross wall installation in service ducts (see page 84).
            Places" (DOC 609INT).                                • Weight: 5.5kg.
                                                                 • 30-year warranty.
                                                                 For taps see the DELABIE catalogue "Water Controls for Public and Commercial
                                                                 Places" (DOC 609INT).





                                                                                                   230
                                                                                                   230
                                    420                                                            190
                                                                                                   190
                              50
                                           130  150                            148  148     120  120     6767
                                    420                                     285  285
                              50
                              Ø 310        130  150                                260
                                                                                   260
                                           340
                              Ø 310
                                                                             Ø 35
                                                                             Ø 35
                                                                                            360
                                           340                                              360
                                                                                 60
                                                                                 60  220
                                                                                  220
                                                                                     400
                                                                                     400
                                    121550                                               121130







            Wall-mounted MINIMAL hand washbasin - Polished satin 304 stainless steel  Wall-mounted BOB hand washbasin - Polished satin 304 stainless steel
            Without tap hole                           120550     Without tap hole                           120130
            With central tap hole Ø 35mm               121550     With right tap hole Ø 35mm                 121130
                                                                                          : dispatch within 4 weeks   : stock item

                                                                                                     Washbasins   25
   22   23   24   25   26   27   28   29   30   31   32
